Different Silicone Rubber Keypad & Keyboard Conductive Ways

Silicone Rubber Keyboard Conduction & Conductive Ways

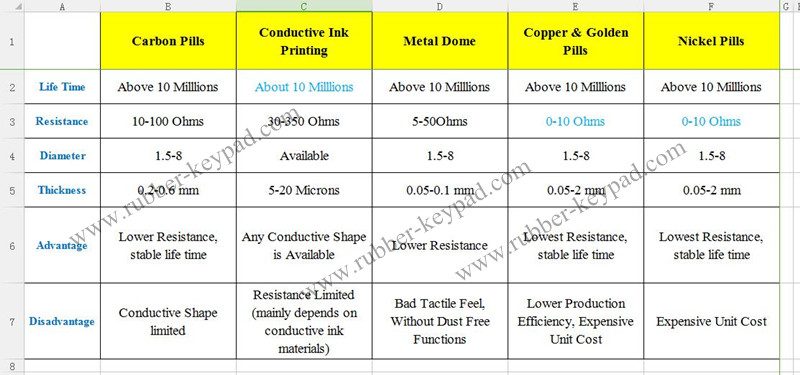

Silicone Rubber Keypad & Keyboard have many conductive ways, like carbon pills, conductive ink printing, metal domes, nickles pills, copper & golden pills.

Different conductive ways have different features and applications.

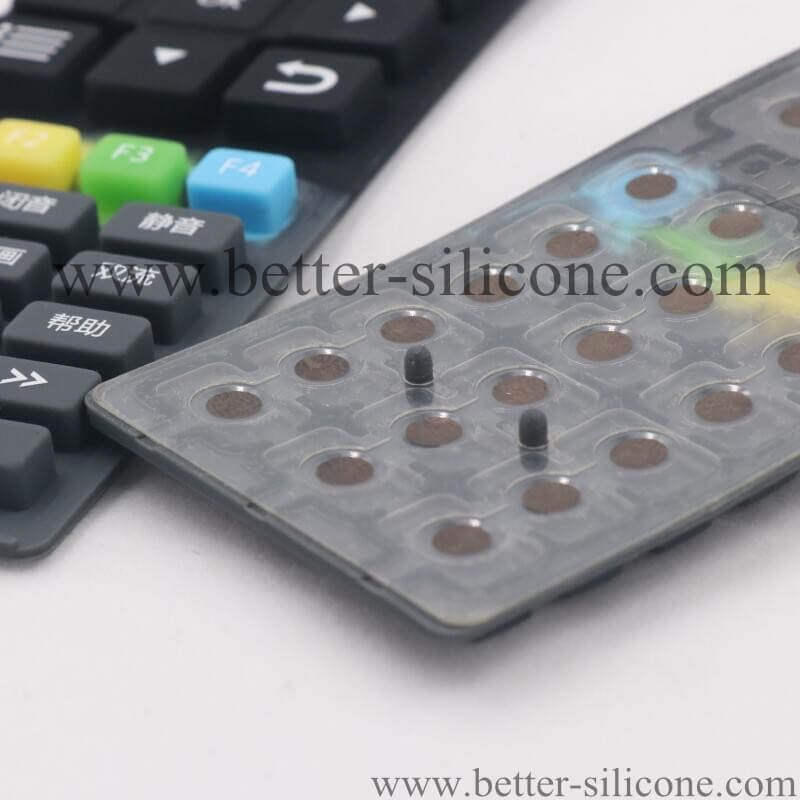

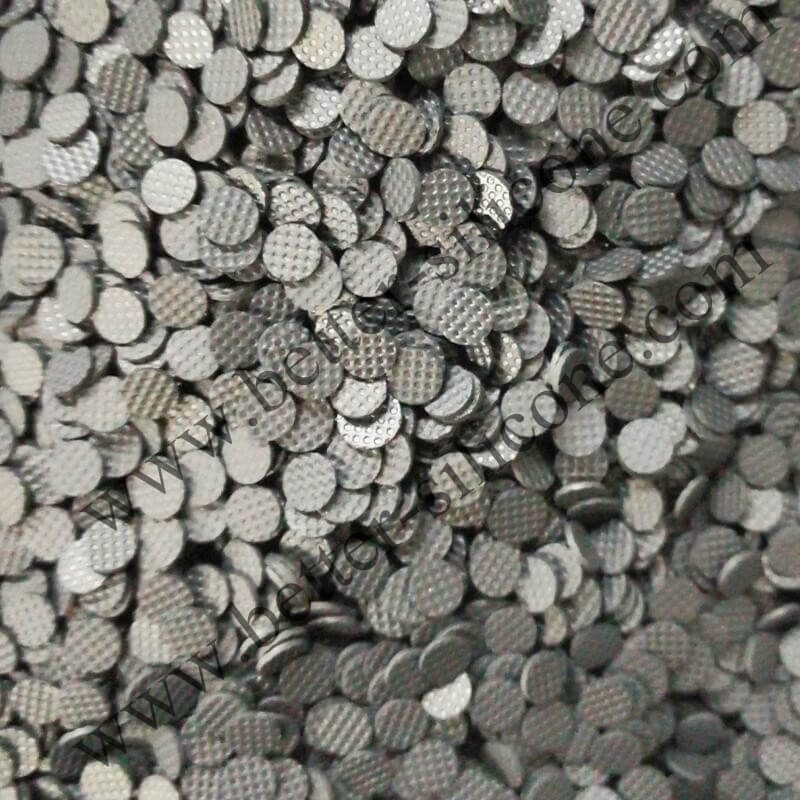

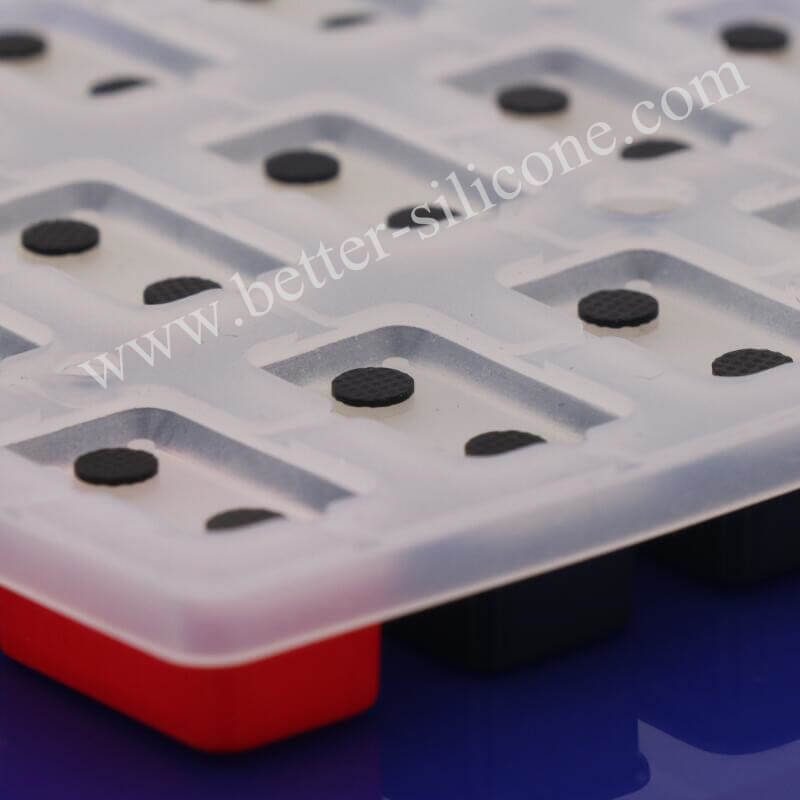

Black Carbon Pills:

Features: Common keypad's conductive ways, Lower Resistance, Stable Performance, Long life time and Cheapest Unit Cost. Rounded Carbon Pills is common

Disadvantage: Conductive Shape Limited.

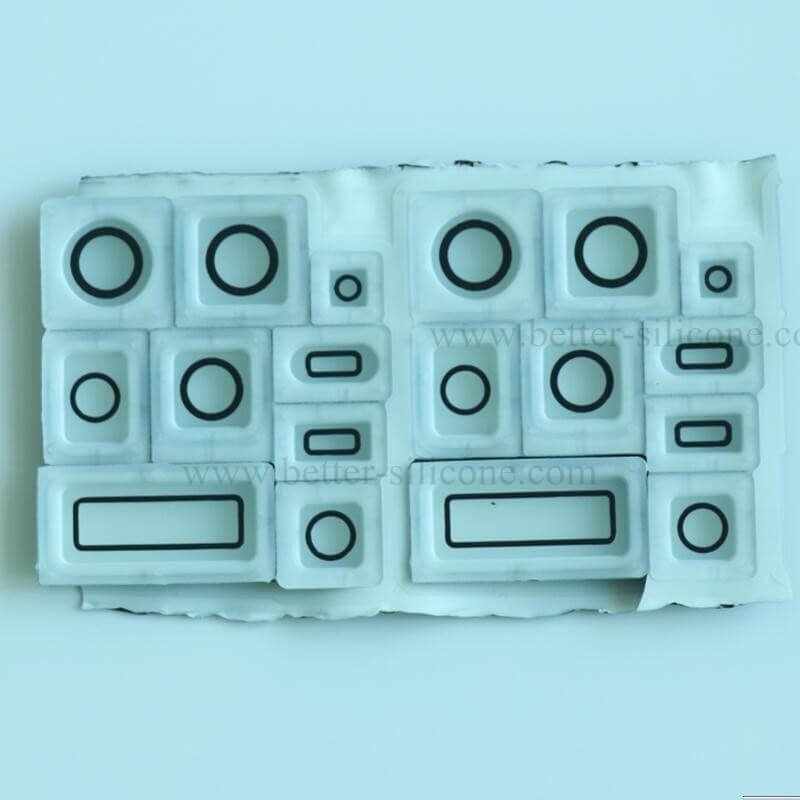

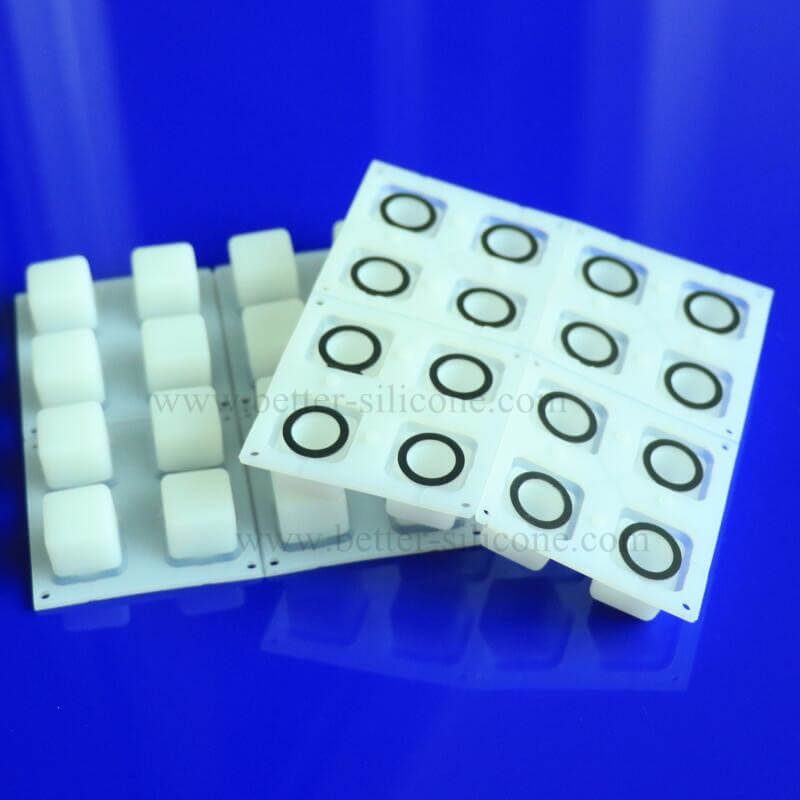

Conductive Ink Printing:

Features: Common keyboard's Conductive Ways,

Not condutive shape limited,  Cheapest Unit Cost.

Disadvantage: Resistance Limited, mainly above 50 Ohms (mainly depends on conductive ink materials)

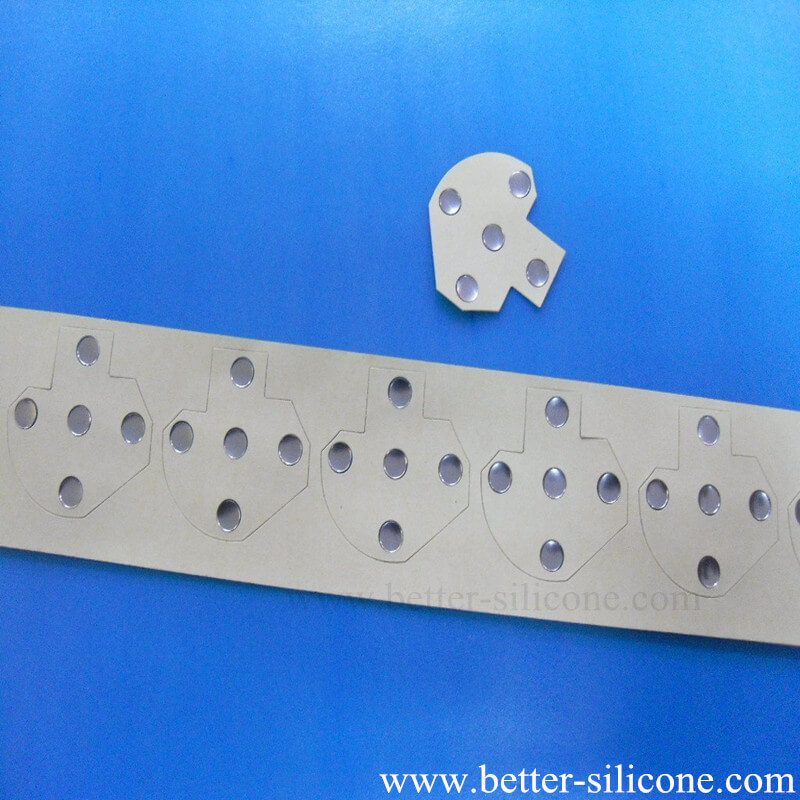

Metal Domes:

Features: Lower resistance, Common keyboard's Conductive Ways,

Disadvantage: Bad Tactile Feel, Without Dust Free Functions

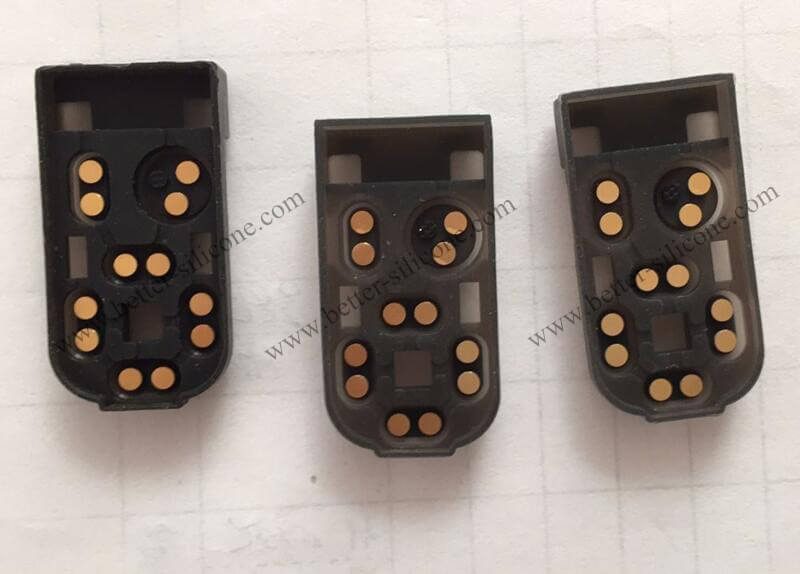

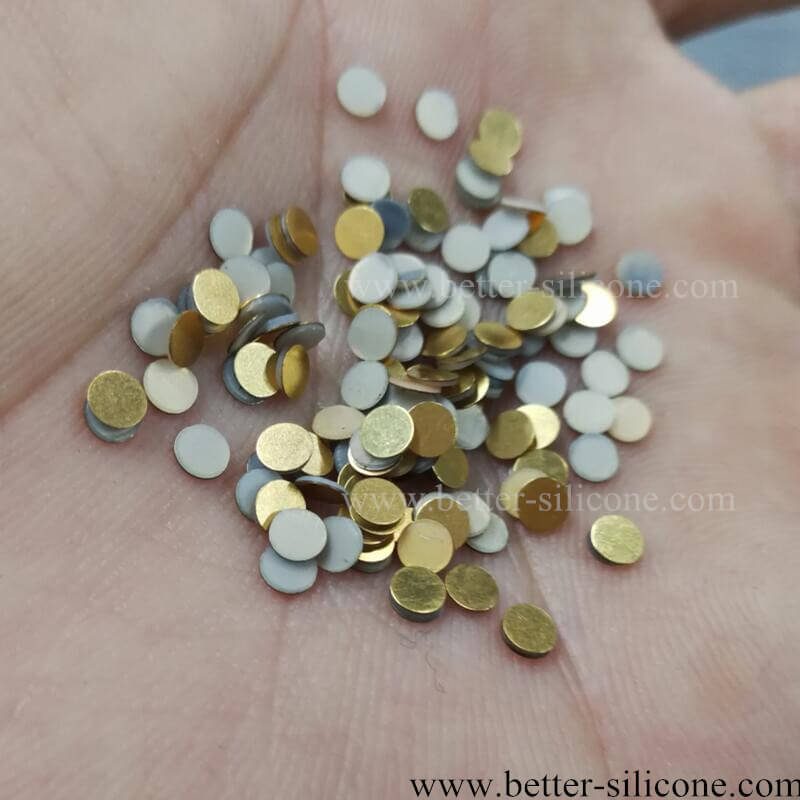

Metal Pills: Copper & Golden Pills

Features: Lowest Resistance, Stable Performance, long life time.

Mainly used in Automobile Products

Disadvantage: Lower Production Efficiency, Expensive Unit Cost

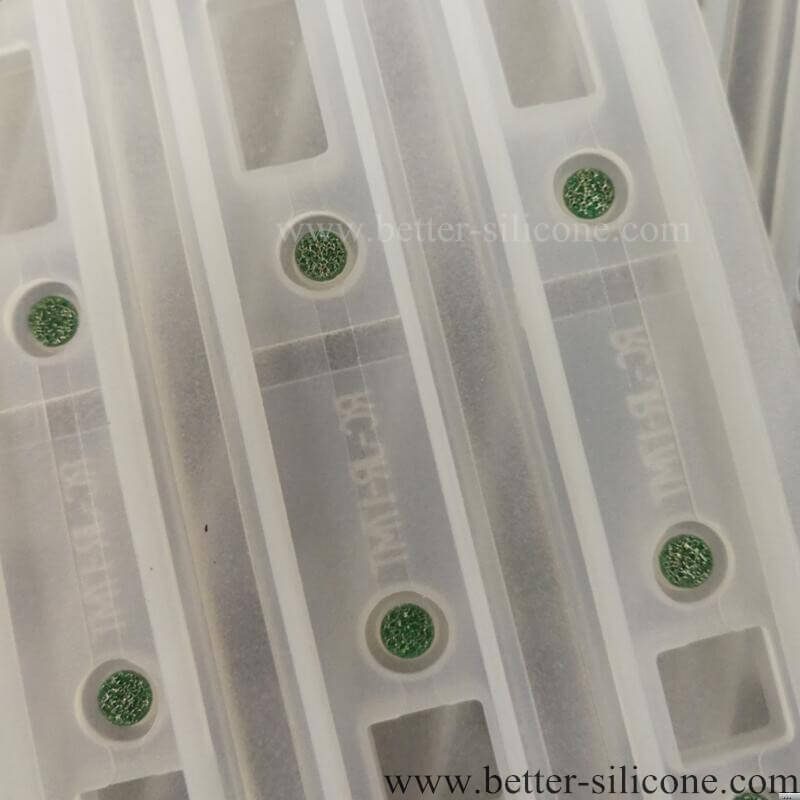

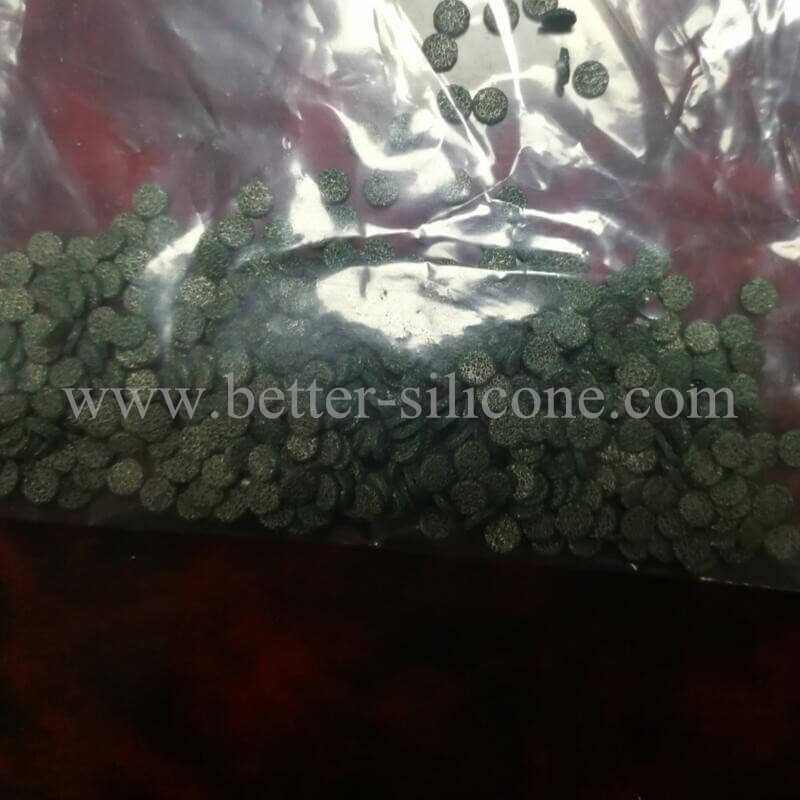

Nickles Pills: Conductive Rubber + Nickle

Features: Lowest Resistance, Stable Performance, long life time.

Mainly used in Automobile Products

Disadvantage: Expensive Unit Cost
