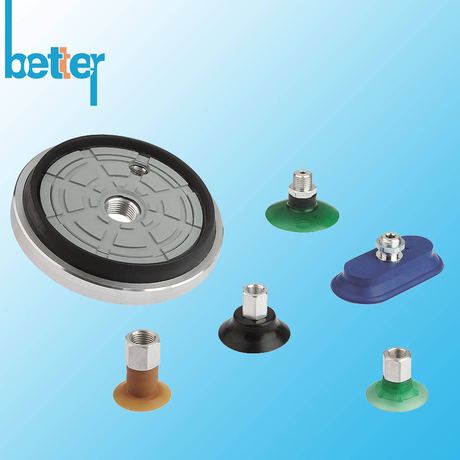

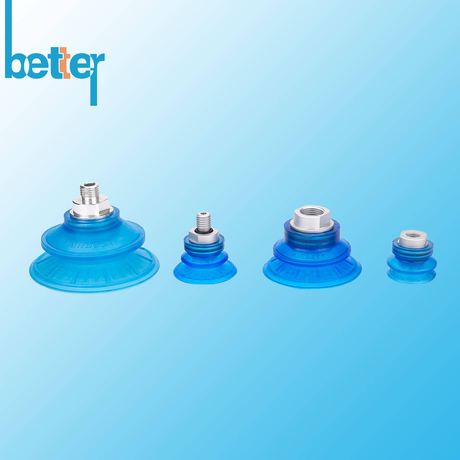

Customized Industrial Suction Gripster

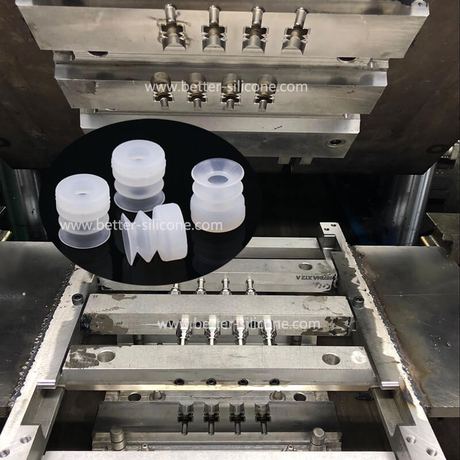

Industrial Suction Gripster, known as Rubber Suction Gripsters, Vacuum Pad & Vacuum Suction Gripsters, which is made from elastomer rubber or silicone materials by rubber compression & injection molding or LSR injection molds, as one of final controlling element for vacuum equipments & vacuum spreaders, which can pick electronic components & panel, label or hold projects, open packaging bags, and also handle & transfer handle board, panels, concrete slabs etc.

Rubber Industrial Suction Gripster Operating & Working Principle

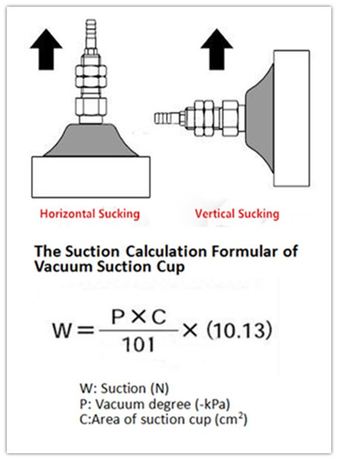

First, connecting the elastic rubber suction gripsters with the vacuum equipment via a elastomeric & metal tube, then attaching with the targeted-lifted objects like glass, panel, board or paper and trigger the vacuum equipment to suck or hook, which will produce negative pressure in silicone vacuum gripster and then it will start moving the targeted-lifted objects.

When it has moved the targeted-lifted objects to the target place, vacuum equipment will smoothly inflated into the silicone rubber suction gripster to change the negative pressure in silicone rubber vacuum gripster into zero pressure or a bit of positive pressure, then the vacuum gripster will separate from the waited-lifted objects, then the moving objects task finished.

Rubber Industial Suction Gripsters Advanatage:

1. Easy to use:

No matter what is sucked object material, as long as it can seal, air-proof, all can working. Electromagnetic chunk & gripsters only working with metal matierals.

2. Not hurt to object components:

Because Vacuum suctions cup is made from elastomer rubber materials, objects will not damange when sucking or lay down

3. Environment friendly:

Silicone Rubber Industial Suction Gripsters will not pollute the environment when working, also will not create light, heat or electromagnetism etc.

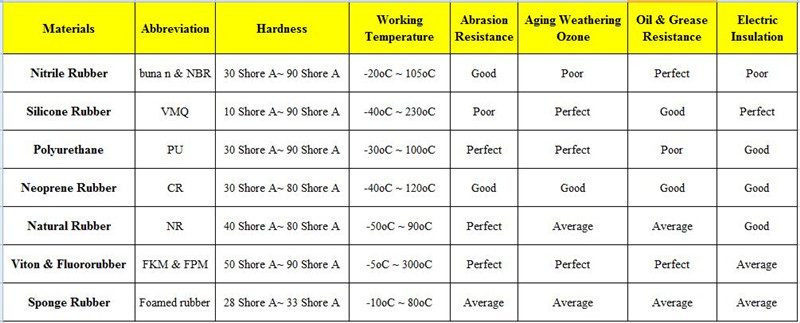

Industrial Suction Gripsters Rubber Materials

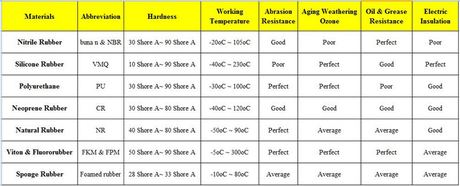

Industrial Suction Gripster & Vacuum Suctions is mainly made from elastomeric rubber like transparent & translucent food grade or medical grade Silicone, Nitrile Rubber, Polyurethane, Neoprene Rubber, Natural Rubber, Viton & Fluororubber, Liquid Silicone Rubber (LSR) etc.

Different rubber suctions cups materials have different properties and applications.

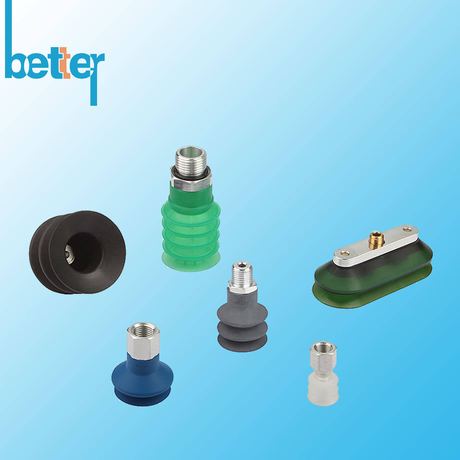

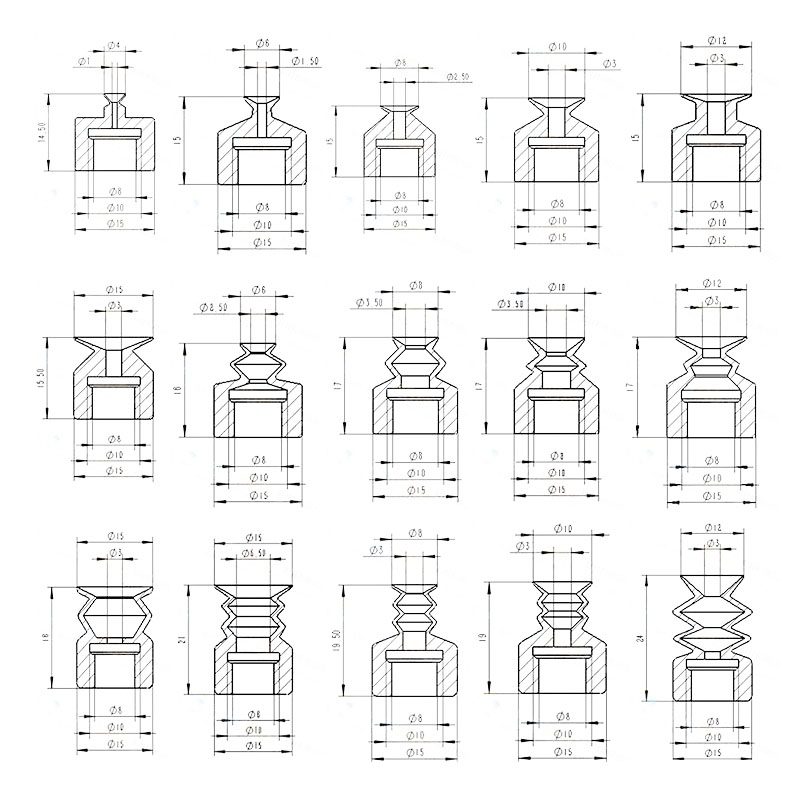

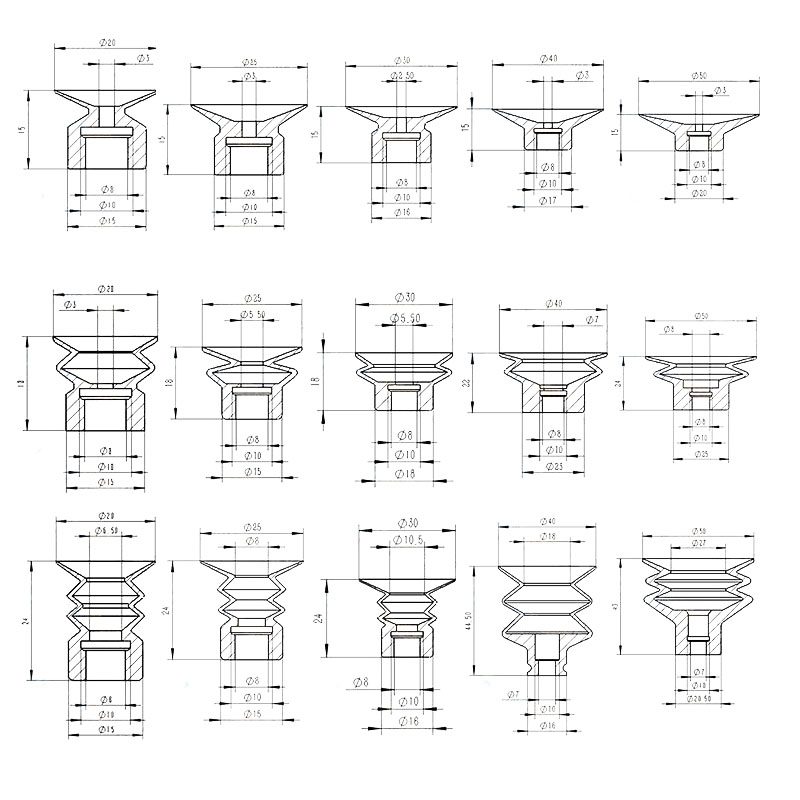

Industrial Suction Gripsters & Vacuum Suctions Main Shape:

1. Flat Suction Gripsters

2. Flat Concave Suction Gripsters

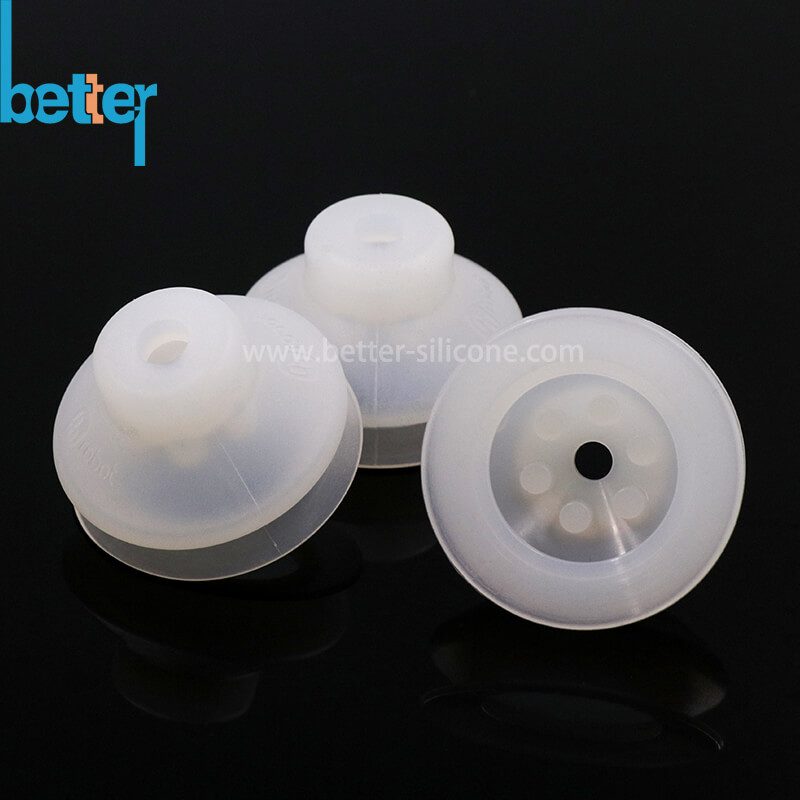

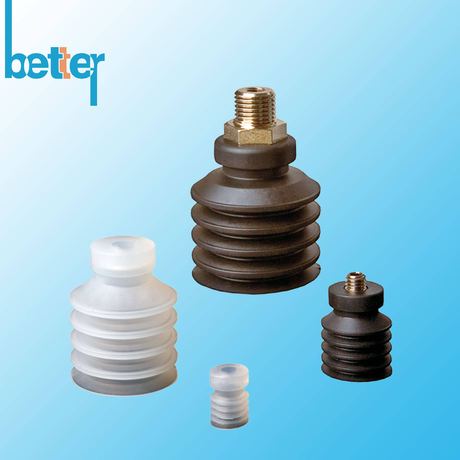

3. Bellows Suction Gripsters

4. Multibellows Suction Gripsters

5. Deep Concave Suction Gripsters

6. Oval Flat Suction Gripsters

7. Oval Concase Suction Gripsters

8. Rectanagular Suction Gripsters

9. Rectangular Bellows Suction Gripsters

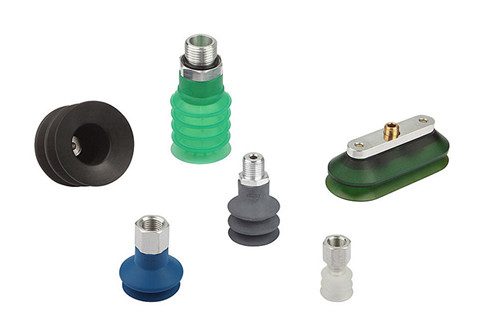

Silicone Suction Gripsters & Bellows Vacuum Gripsters also can overmolded or fixed with metal screws & components, plastic handles as a mounting element, level comensators, ball joints, valve, fitting etc.
