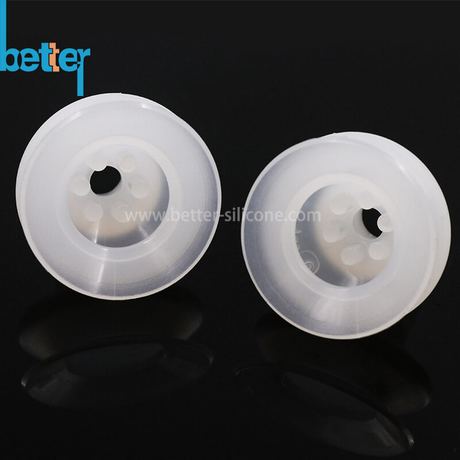

Customized Elastomeric Rubber Vacuum Suctions

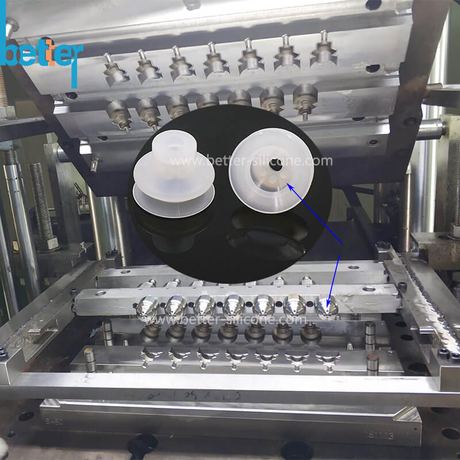

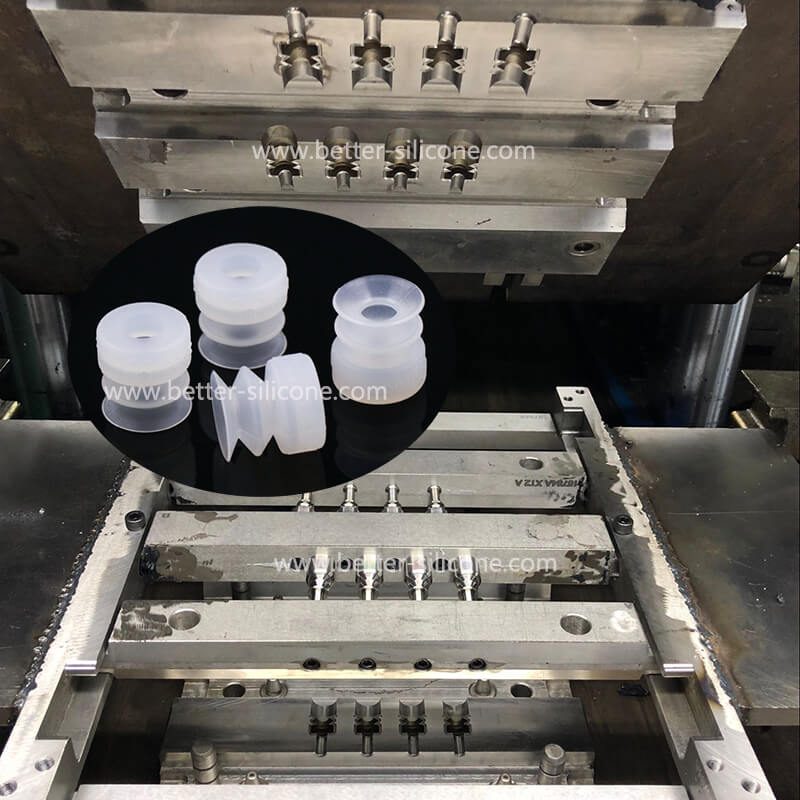

Vacuum Suction, Vacuum Gripsters & Pads, known Suction Gripsters, which is most made from elastomeric plastic or transparent silicone rubber materials by rubber compression & injection molding or LSR injection molds

Rubber Vacuum Suctions, as one of final controlling element for vacuum equipments & vacuum spreaders, which can pick,  handle and transfer electronic components & panel, label or hold projects, open packaging bags, handle board, panels, concrete slabs etc.

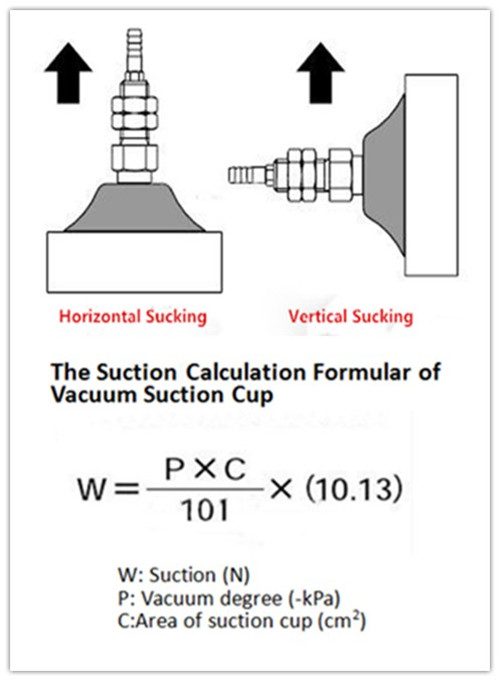

Vacuum Suction Working Principle

Connecting the elastomic rubber suction gripsters with the vacuum equipment via a elastomeric silicone rubber, plastic or metal tube, then attaching with the targeted-lifted objects like glass, panel, board or paper and trigger the vacuum equipment to suck or hook, which will produce negative pressure in silicone rubber vacuum gripster and then it will start moving the targeted-lifted objects.

When it has moved the targeted-lifted objects to the target place, vacuum suction equipment will smoothly inflated into the elastic rubber suction gripster to change the negative pressure in elastic vacuum gripster into zero pressure or a bit of positive pressure, then the silicone rubber vacuum gripster will separate from the waited-lifted objects, then the moving objects task finished.

Vacuum Suctions is widely used in industrial suction gripsters equitment & mechanical arm, and also in our daily life.

Elastomeric Vacuum Suctions & Pads Advanatage:

1. Easy to use:

No matter what is sucked object material, as long as it can seal, air-proof, all can working. Electromagnetic chunk & gripsters only working with metal matierals.

2. Not hurt to object components:

Because Vacuum suctions cup is made from elastomer rubber materials, objects will not damange when sucking or lay down

3. Environment friendly:

Silicone Rubber Industial Suction Gripsters will not pollute the environment when working, also will not create light, heat or electromagnetism etc.

Vacuum Suctions & Pads Materials

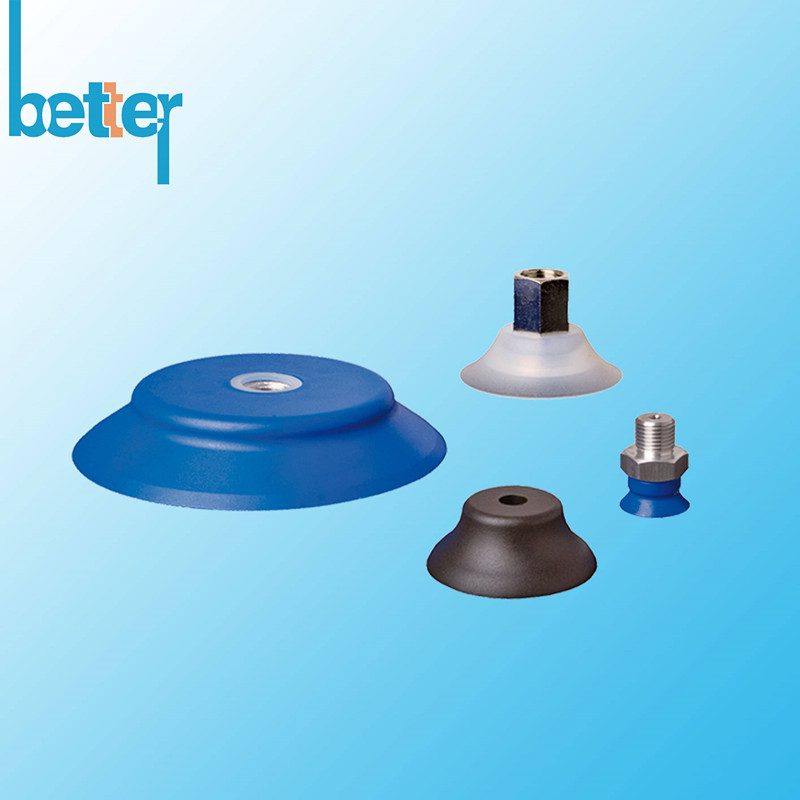

Vacuum Suctions & Industrial Vacuum Gripsters is mainly made from elastomeric plastic or rubber like transparent & translucent food grade or medical grade Silicone, Nitrile Rubber, Polyurethane & PU, Neoprene Rubber, Natural Rubber, Viton & Fluororubber, Liquid Silicone Rubber (LSR), PVC, TPU, MPU etc.  Rubber Vacuum Suctions & Cups, mainly assemble with metal or plastic connects.

Different rubber suctions cups materials have different properties and applications.

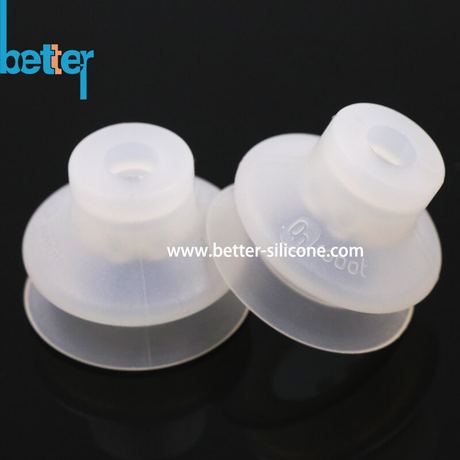

Like silicone vacuum suction, which can made from FDA medical & food grade silicone, is widely used in breast suction gripsters, cupping therapy & silicone cupping therapy, cellphone suction holder, shower suction gripsters, bobbin winder for lines & threaded suction gripster, suction gripster hooks,

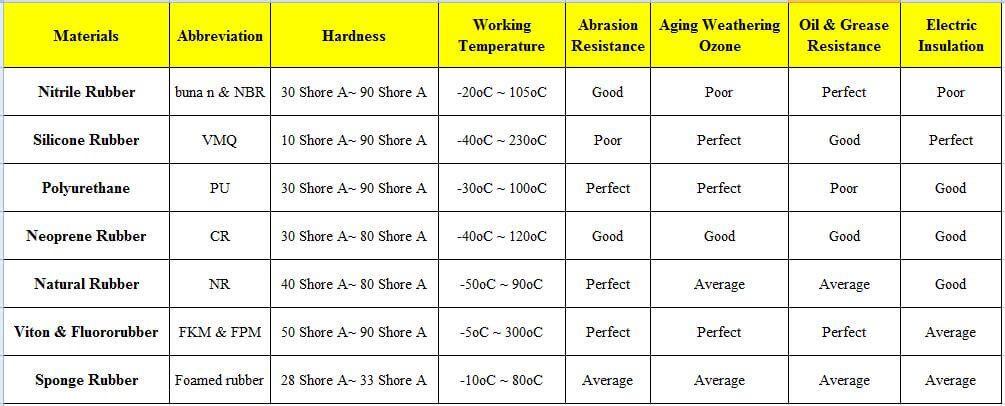

Following is main elastic vacuum suction gripsters materials.

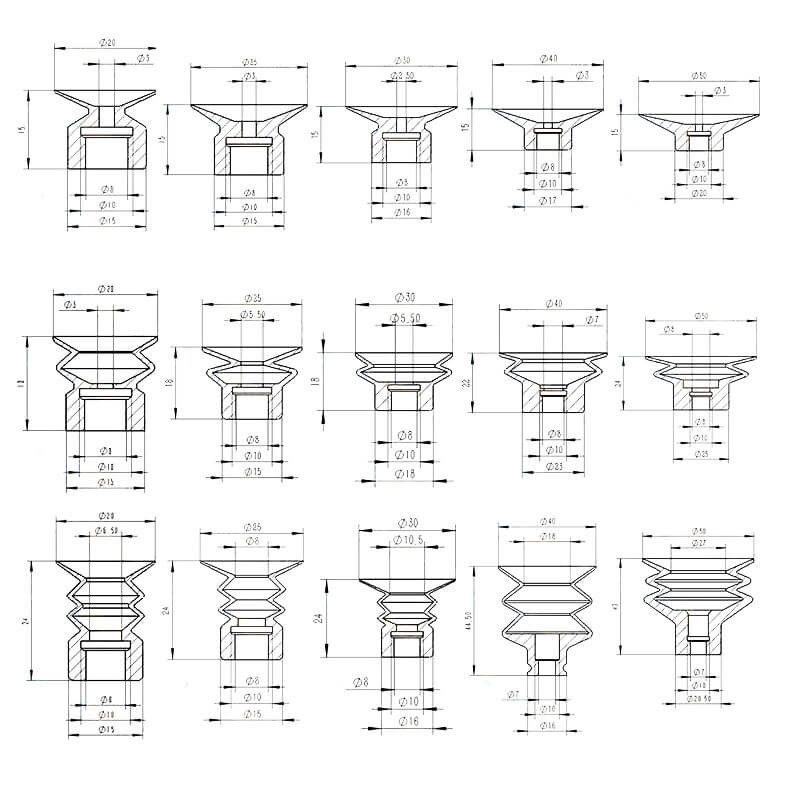

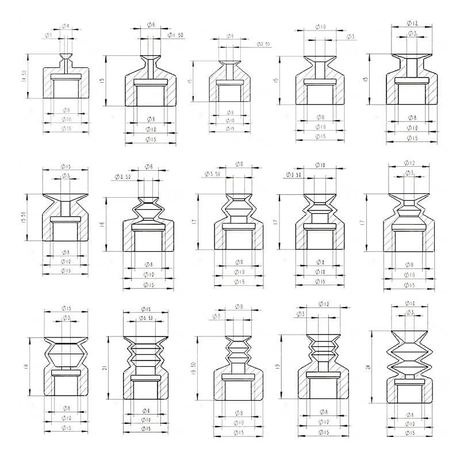

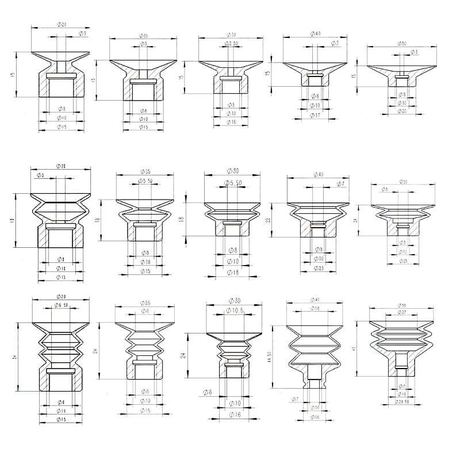

Vacuum Suctions Main Shape:

1. Flat Vacuum Suctions & Pads

2. Flat Concave Suction Gripsters

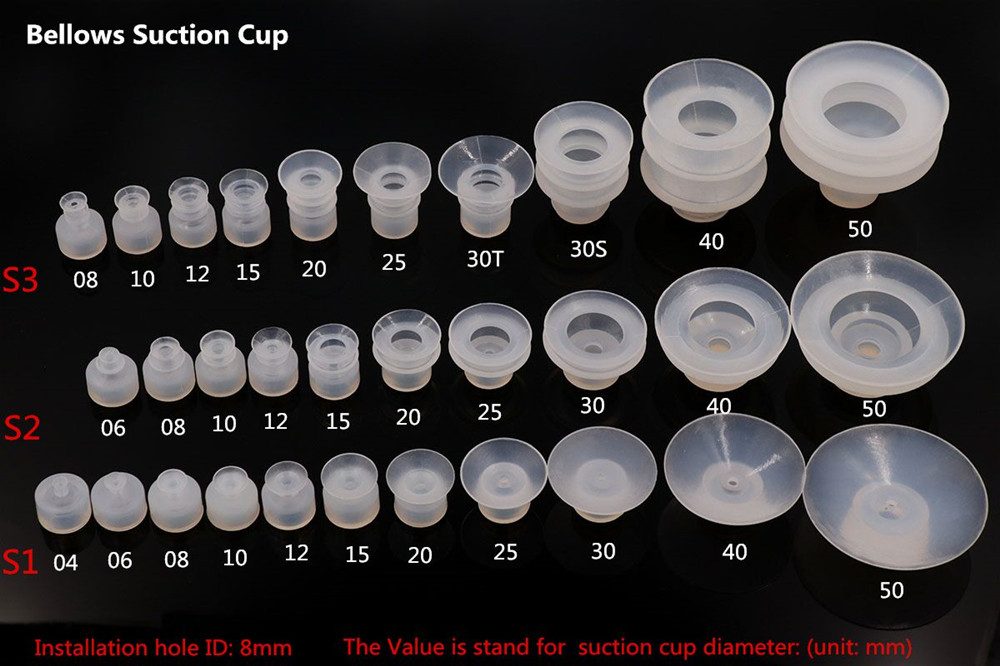

3. Bellows Suction Pads & Feets

4. Multi bellows Suction Gripsters

5. Deep Concave Suction Gripsters

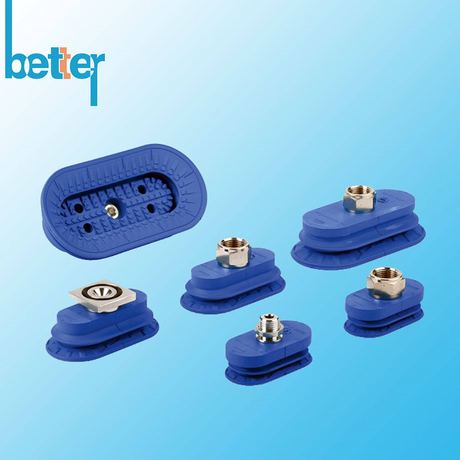

6. Oval Flat Suction Gripsters

7. Oval Concase Suction Gripsters

8. Rectanagular Suction Gripsters

9. Rectangular Bellows Suction Gripsters

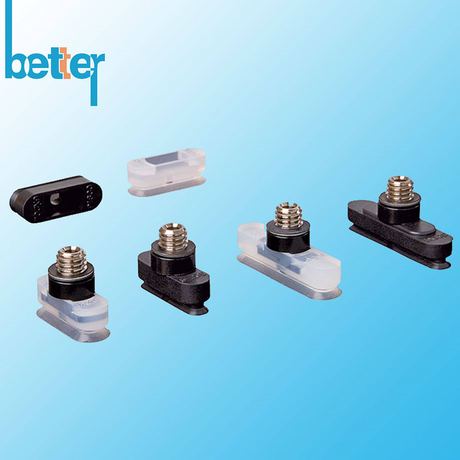

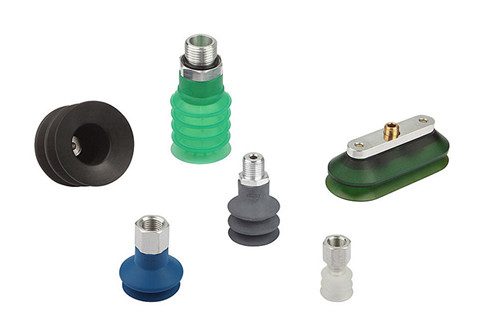

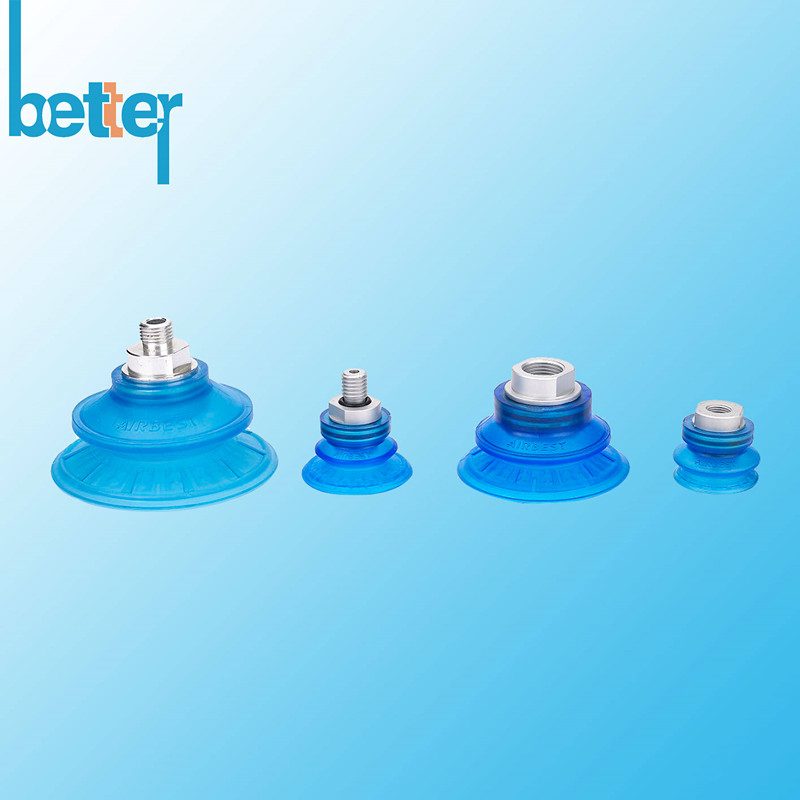

Silicone Suction Gripsters & Bellows Vacuum Gripsters also can overmolded or fixed with metal screws & components, plastic handles as a mounting element, level comensators, ball joints, valve, fitting etc
