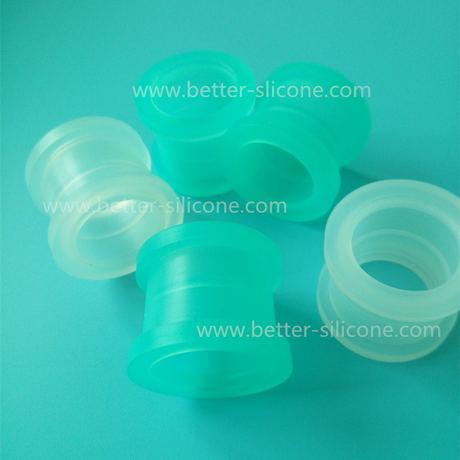

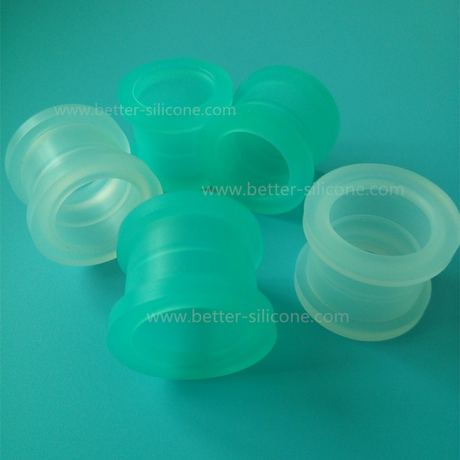

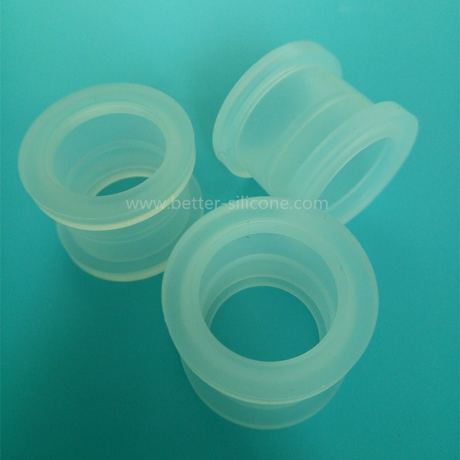

Silicone Bushing

Silicone Bushing  Description
Silicone bushing  playing a role of liner is mostly applied in the field of valve,which is in the valve bonnet , wrapping the valve stem. A bushing Block or rubber bushing block is a type of vibration isolator, it provides an interface between two parts, damping the energy transmitted and to absorb shock and reduce vibration through the suspension  rubber silent bushing .

  Silicone Bushing     Function
The Silicone bushing  can be replaced very conveniently if it is worn out. If you don’t use the bush block, you have to replace the whole part once abrasion. Now, people tend to replace the rubber damper bushing bolck (while designing, the hardness of bushing can be reduced to be a bearing grinding of friction pair), due to its convenient processing, low replacement cost and easy replacement, of course, also including other secondary functions, like guiding function, and etc.

A common application  of  Silicone bushing block is in vehicle suspension systems, where a sleeve bushing block made of rubber (or, more often, synthetic rubber or polyurethane) separates the faces of two metal objects while allowing a certain amount of movement. This movement allows the suspension parts to move freely, for example, when traveling over a large bump, while minimizing transmission of noise and small vibrations through to the chassis of the vehicle. A poly  bush may also be described as a flexible mounting or antivibration mounting .

  Silicone Bushing   Feature
- various hardness for your choice.
- oil resistance.
- good anti-aging performance.
- ease of bonding to other material.
- excellent oxygen and ozone resistance.
- non-flammable,self-extinguish.
- good gas tightness.
- high heat resistance.
- good abrasion resistance .




Silicone Bushing     Specification

Material	EPDM, NR, Silicon, FKM,IIR,NBR,SBR,Sponge Rubber, or Custom Compound
Color	Black,white,red,green,transparent or any color according to Pantone colors
Size	As per  customer's requirements
Hardness	Shore A
Service	OEM or ODM
Production basis	Samples or drawings
Technology	Hot pressing molding ,injection molding or extrusion
Working temperature	, 60~350℃
Tolerance	±0.05mm
Density	1.0-2.0g/cm³
MOQ	1 pc
Certification	ROHS,FDA,ISO9001:2000
Conductivity	Conductive or insulative
Working life	1-30 years
Samples	1-2 pcs of free samples are available
Application	Automotive,Mechanical equipment,Construction,Home appliance,Aviation, Office facilities,




Performance of  Silicone bushing


NBR Bushing	excellent resistant to oil,widely used in industrial area
EPDM Bushing	excellent resistance to weather and ozone,good resistance to heat,low temperature and chemical
NR Bushing	high elasticity,good chemical strength
CR Bushing	generally good resistance to ozone,aging,and chemical,good mechanical properties over a wide temperature range
SBR Bushing	shock resistance,performance well in adhesion and sealing
Silicone Bushing	widest operating temperature range,performance stably in high and low temperature,widely use in food sealing area
VT/FKM Bushing	excellent resistance to high temperature and a broad range of chemical,permeability and compression set are excellent
HNBR Bushing	thermal stability and oxidation resistance
IIR Bushing	low permeability rate and good electrical properties
FVMQ Bushing	widest operating temperature range,performance stably in high and low temperature,good resistance to oil and fuel
ACM Bushing	good resistance to mineral to oil,oxygen and ozone

Manufacturing Process of Silicone Bushing

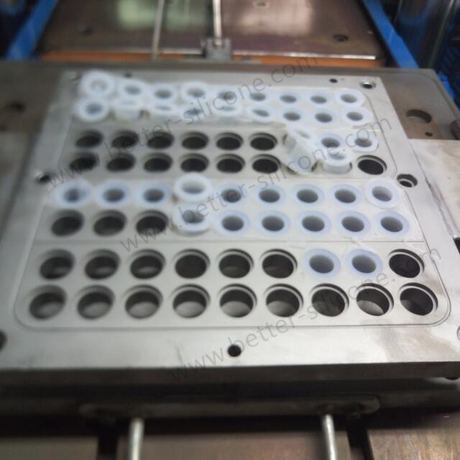

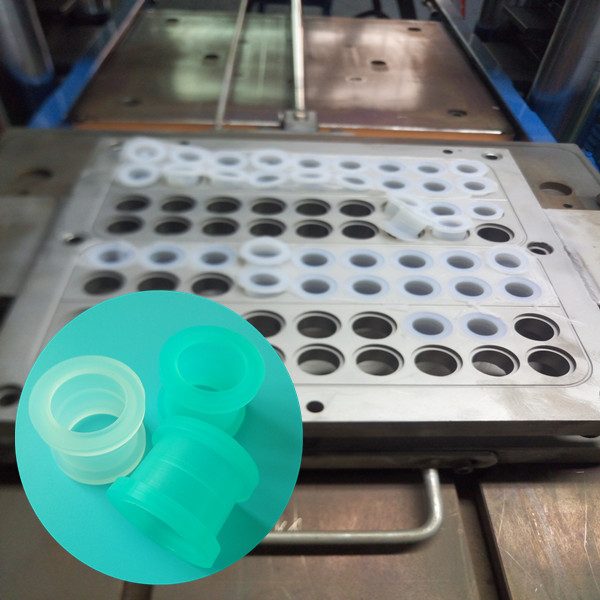

Silicone bushing block  is  manufactured by compression molding in our Automatic Hydraulic Compression Molding Presses.
Along with our in-house tool room, and highly experienced manufacturing team, our range of Mo l ding machines enable us to deliver:
·  Uniform Vulcanization / Curing of the Material: All parameters (like pressure, temperature and vulcanization time) are automatically controlled.
·  Excellent Dimensional Accuracy: We offer high dimensional accuracy in the rubber bush block .
Huge range of designs and sizes: We offer rubber liner bushes in a huge variety of designs/sizes.
