Rubber Backlight Keypad
Custom moulded by Xiamen Better Silicone Rubber Co., Ltd. Made to your drawing, 3D model or sample.
| Brand | Better |
|---|---|
| Code | 9C1 |
- Category
- Silicone Backlight Keypad
- Lead time
- Quoted with the part
- Tooling
- Designed and cut in house
Also searched as:Rubber Backlit KeypadBacklight KeypadRubber Backlight KeyboardRubber Backlit Keyboard
Product description
Rubber Backlight Keypad

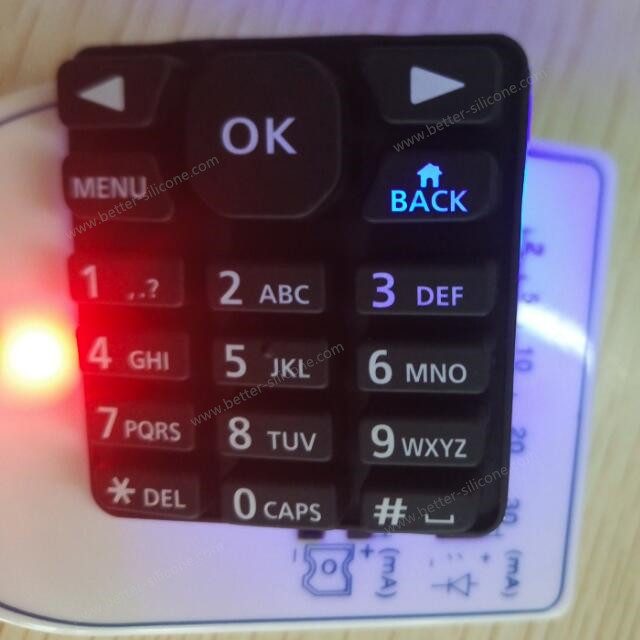

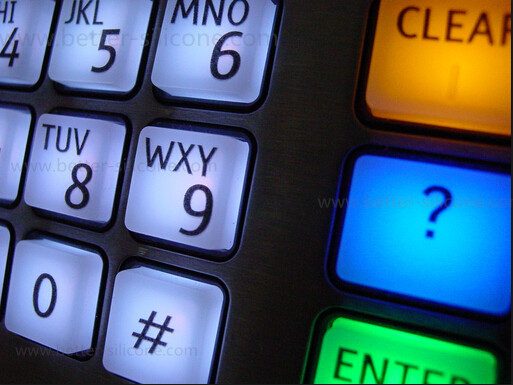

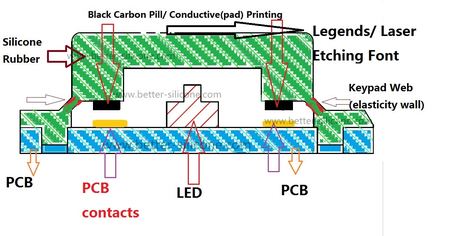

Rubber Backlight Keypad, also called rubber backlit keypad or ambient light keypad, which is made of elastomeric transparent (translucent ) silicone rubber materials, make the best of keypad materials characteristics and combimed with LED lighting in aim to produce a good back lighting effects of switch products.
Some rubber backlight keypad is made of plastic and metal etc. This mainly talking about silicone rubber backlight keypad.
Featured Rubber Backlight Keypad , not only take full advantage of translucent or transparent silicone rubber materials characteristics, but also make full use of rubber keypad's surface process to improve rubber keypad backlight effects and quality. Like Laser Etched, Screen Printing, Color Spraying Coating, PU Coating, Matte Surface Treatment etc.
Featured Rubber Backlight Keypad , not only take full advantage of translucent or transparent silicone rubber materials characteristics, but also make full use of rubber keypad's surface process to improve rubber keypad backlight effects and quality. Like Laser Etched, Screen Printing, Color Spraying Coating, PU Coating, Matte Surface Treatment etc.
Following have some ways to process backlight rubber keypads.

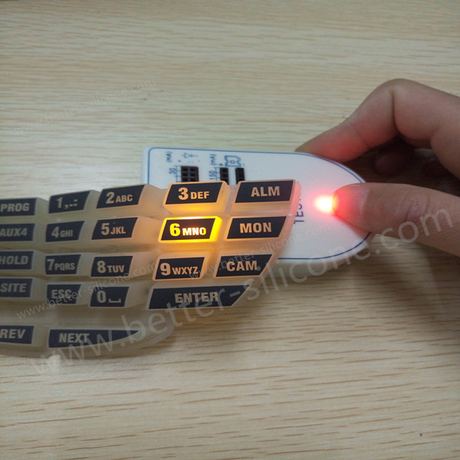

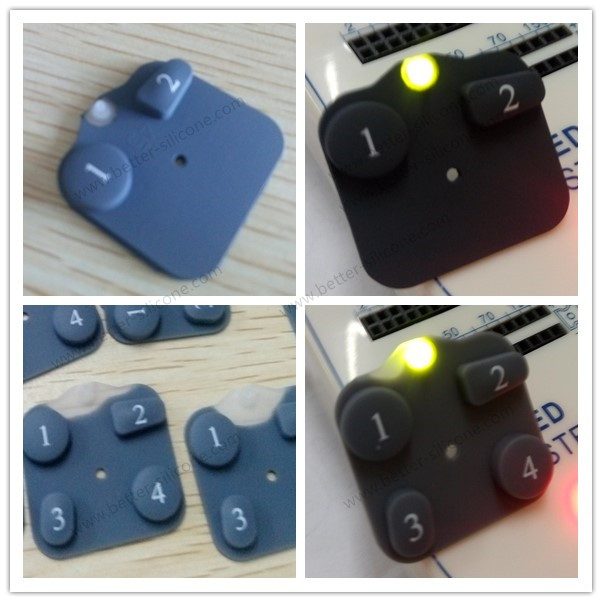

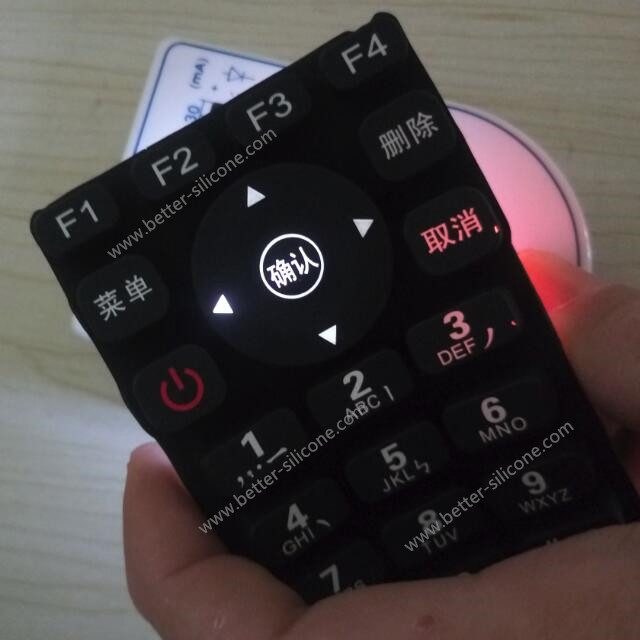

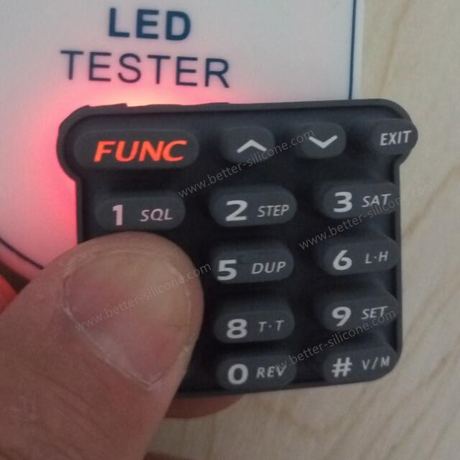

Laser Etched Rubber Backlight Keypad
Laser Etched Rubber Backlight Keypad: Firstly, Do Printed Ink Process, the printed ink color is same to the laser etched legends, and then spray coating on the surface the rubber backlight keypad. Lastly place the keypads on the laser etched machines for process.

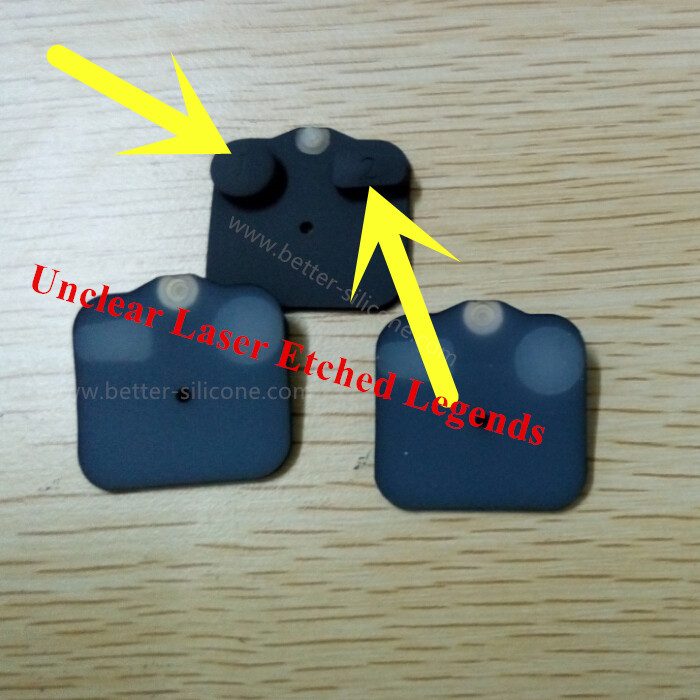

Notes: Rubber Backlight keypad's legends color should have a high contrast with the spray coating color

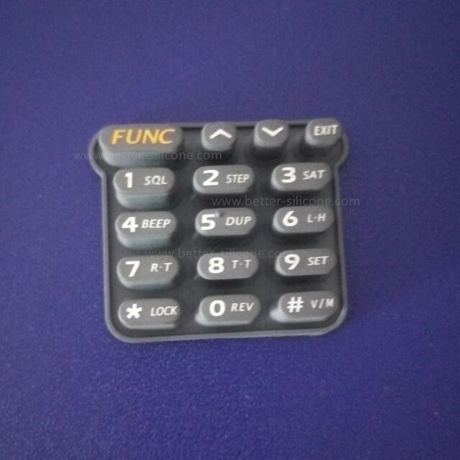

Like following case: The legends color is translucent, and the spray coated color is gray.
Transparent Translucent Rubber Backlight Keypad

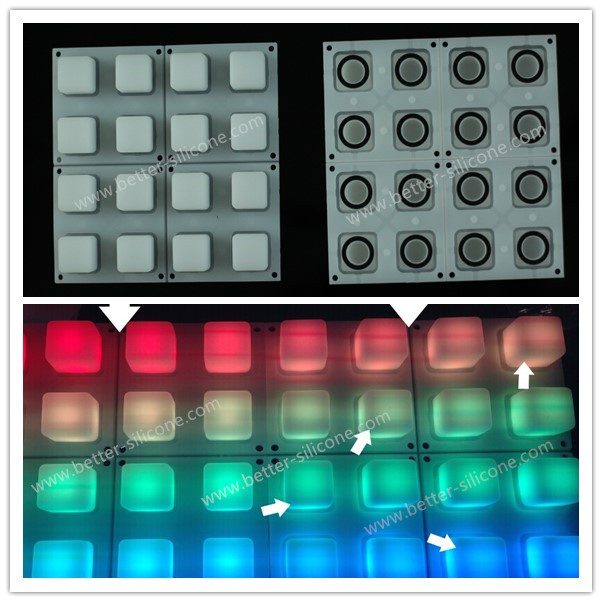

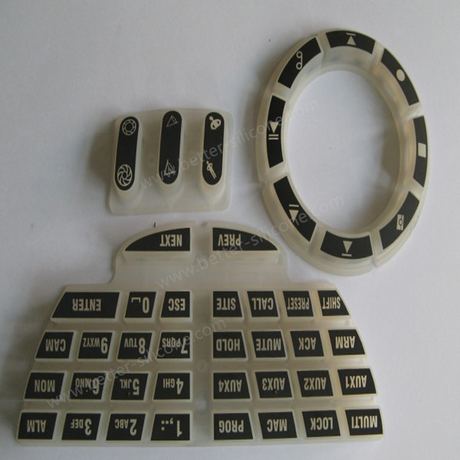

1.) Transparent Rubber Backlight Keypad
Transparent rubber backlight keypad, which take full advantage of silicone original materials which is translucent. Different silicone is different transparency. Generally, more better silicone materials, the color is more transparent. The original color of liquid silicone is almost transparent.
That have two different translucent backlight Silicone Keypad: The first one is more transparent: The one make cover tool to protect the translucent parts and then dotwo layers sprayer coating.
The Second is less transparent, which choose mixed color process way.

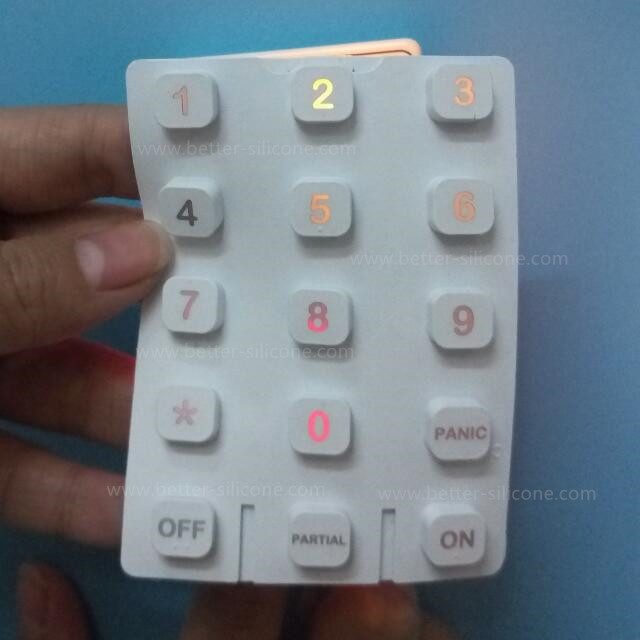

2.) Silk Screen Translucent Rubber Backlight Keypad
Silk Screen Translucent Rubber Backlight Keypadgenerally, need spray painted before do font or symbol printing on the surface, and the do PU coating process to protect the legends. However, Silk Screen Translucent Silicone Backlight Keypad, which needn't do spray coating process. For better backlight legends effects, sometimes, also needn't do PU coating or UV+PU coating.
Knowledge: The light source of Plastic Backlit Keyboard is different the backlight which light source behind LCD.
Quickly Quotation Requirements
1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples
2. Include number of legend and silicone colors, Of need silicone light guide.
3. With or without carbon pills
4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.
5. Quantities to be quoted
These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.
1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples
2. Include number of legend and silicone colors, Of need silicone light guide.
3. With or without carbon pills
4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.
5. Quantities to be quoted
These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.
