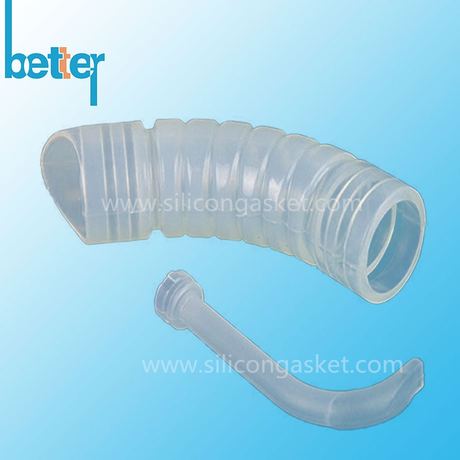

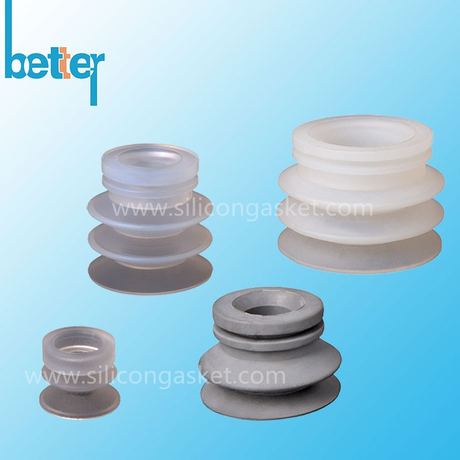

Flexible Silicone Rubber Expansion Bellows

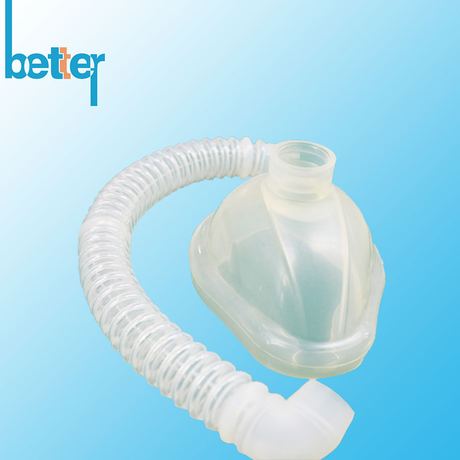

Rubber Suspension Bellows, known as Silicone Expansion Joints, convoluted Rubber Bellow Boots, flexible medical silicone bellows, is used in industrial and medical devices to protect against dust, water, oil, grease,acids and other environment elements, which is usually made from NR, CR, EPDM, silicone, VMQ.
Rubber Expansion Bellows can be designed in various shapes and size to suit your needs.


Rubber Bellows Main Struction and Shape

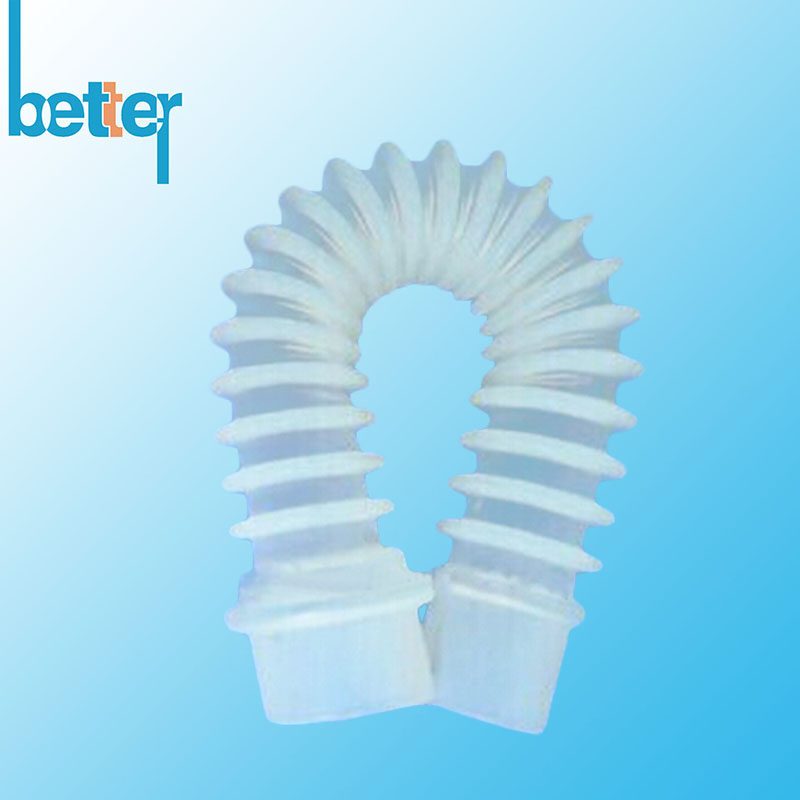

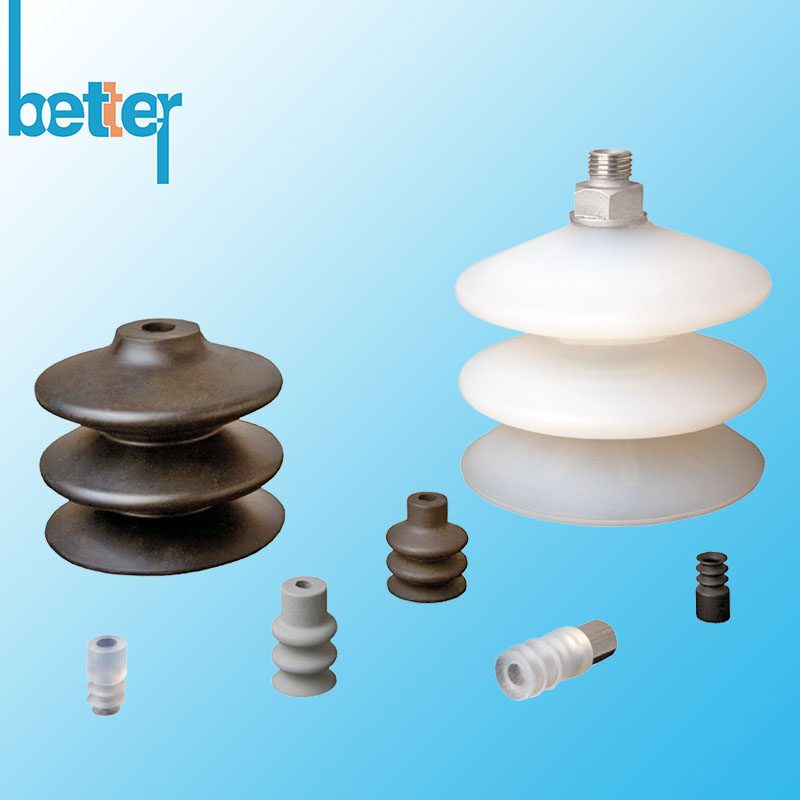

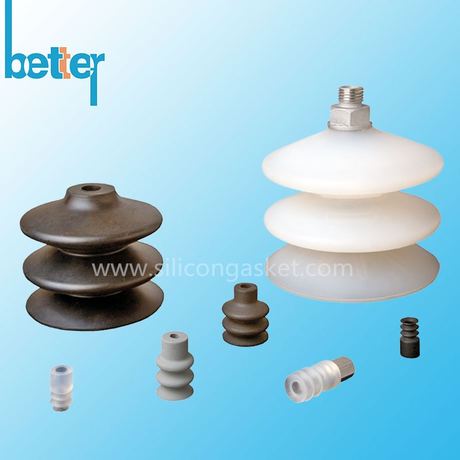

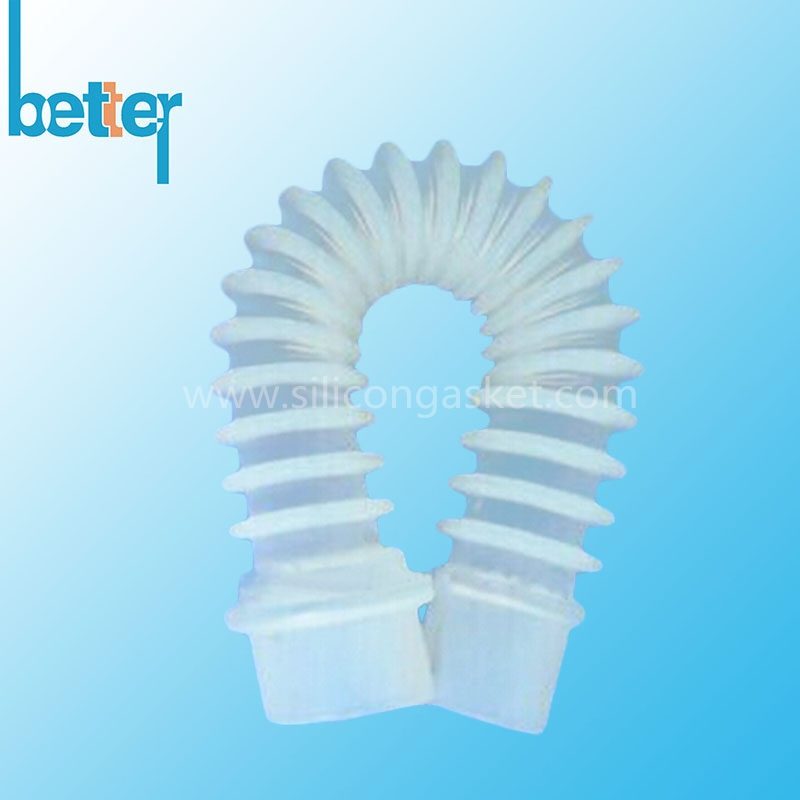

Straight Convolution Rubber Bellows

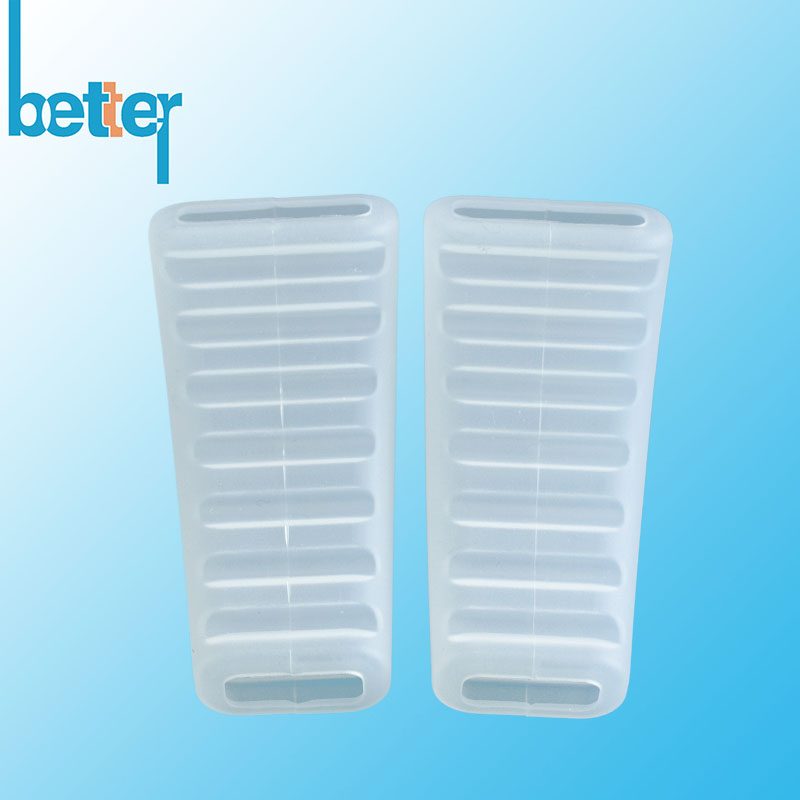

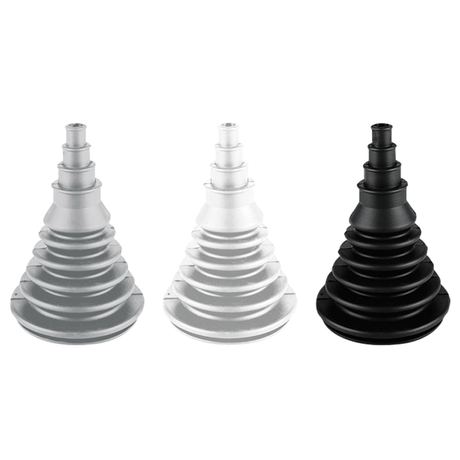

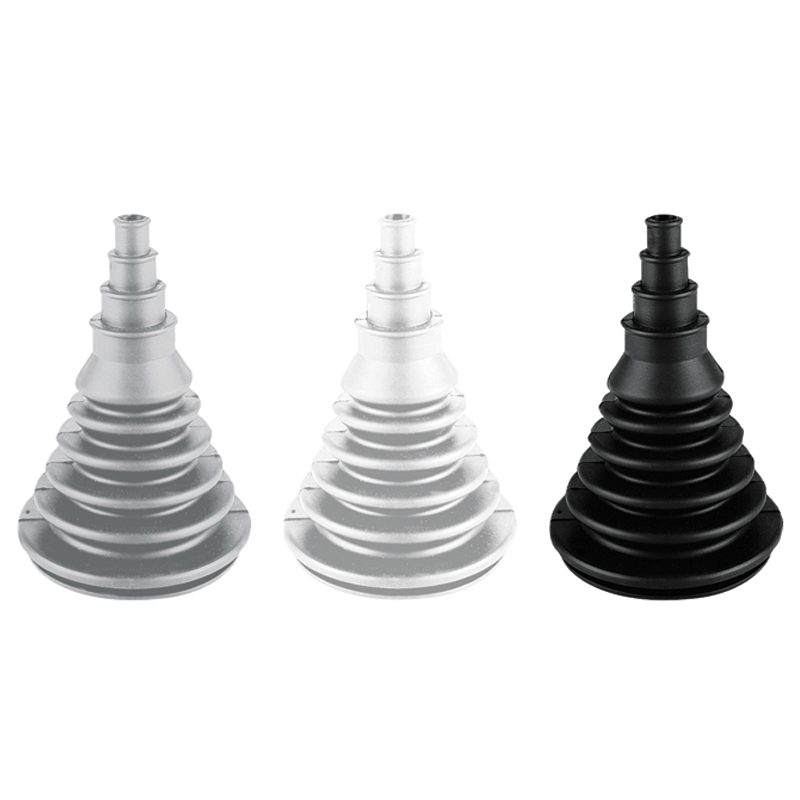

Tapered Rubber Bellows

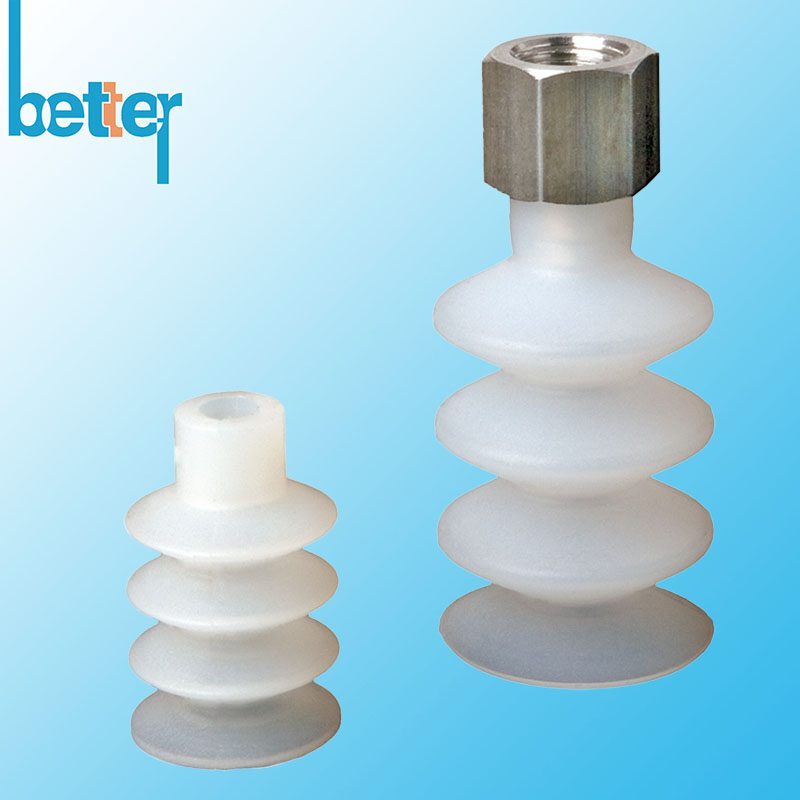

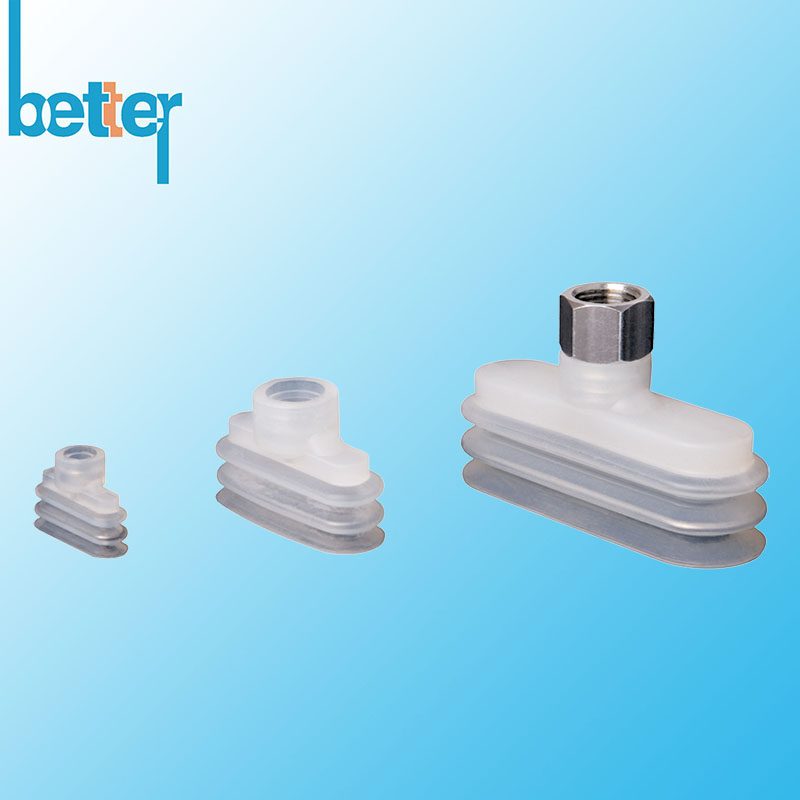

Metal + Rubber Overmolded Bellows

Rubber Bellows with Clamping, Holes & Locks


Rubber Bellows Main Materials

Material	Abbreviation	Temperature Range	Aging Weathering Ozone	Resistance to Oil & Grease	Water Swell Resistance	Flex-Fatigue	Economy of Material	Material Notes
Chloroprene(Neoprene)	CR	-40F to 250F	Good	Good	Average	Very Good	Good	exposure to refrigerants,can be compounded for FDA applications
Nitrile	NBR	-22F to 212F	Poor	Very Good	Good	Good	Very Good	Automotive Applications, Good Oil Proof
Ethylence-Propylene	EPDM,EPM	-60F to 300F	Very Good	Poor	Very Good	Good	Very Good	Outside Applications, Good Weather Proof
Silicone	VMQ	-75F to 450F	Very Good	Average	Very Good	Very Good	Average	Medical Applications
Fluo Rubber	FKM	5F   to 390F	Very Good	Very Good	Good	Average	Poor	Rubber King, Widely Applications
