Superconductive Silicone - Electrically Conductive Rubber Sheets
Custom moulded by Xiamen Better Silicone Rubber Co., Ltd. Made to your drawing, 3D model or sample.
| Process | Compression, transfer or LSR injection moulding, chosen for your volume |
|---|---|
| Materials | Silicone, LSR, EPDM, NBR, neoprene, natural rubber, butyl, FKM |
| Hardness | 10 to 80 Shore A |
| Colour | Matched to Pantone or to your sample |
| Customisation | Size, geometry, branding, printing and packaging |
- Category
- Electrically Conductive Rubber
- Lead time
- Quoted with the part
- Tooling
- Designed and cut in house
Also searched as:Conductive Silicone Sheetthermally conductive siliconeelectrically conductive silicone rubberconductive silicone tubingelectrically conductive rubber
Product description
Conductive Silicone & Super Conductive Silicone Rubber

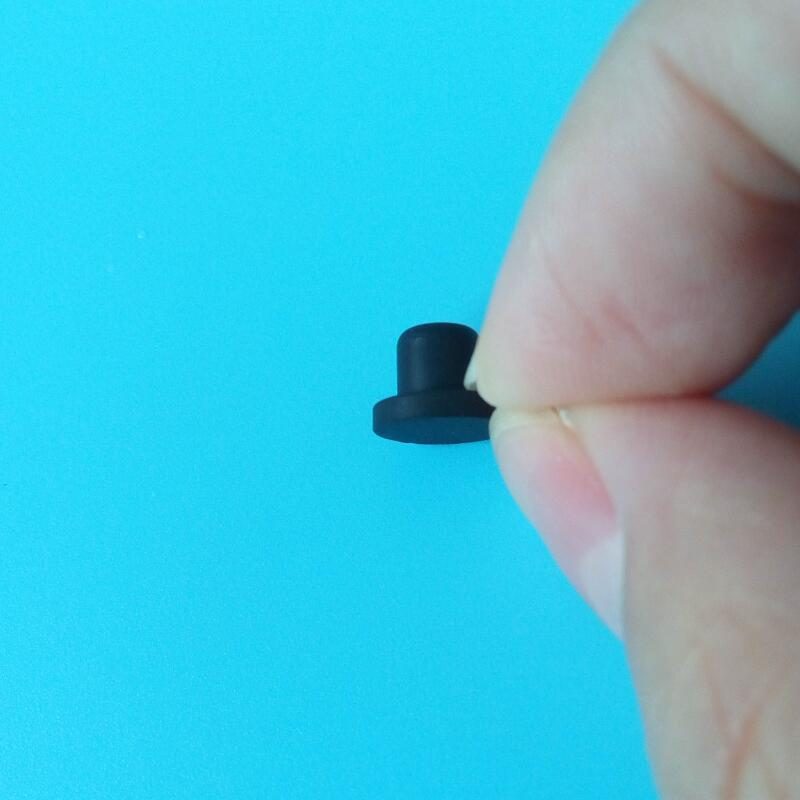

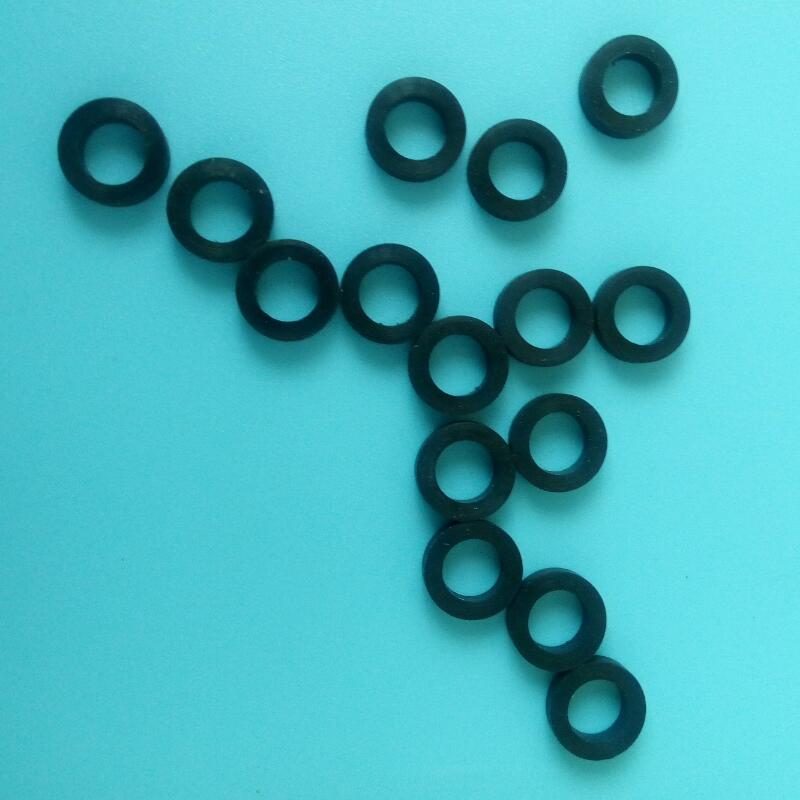

Xiamen Better Silicone Rubber Co.,Ltd can produce different kinds of thermally electrically superconductive & conductive silicone seal, molded sheets, gasket, O-ring, ring washer etc, which is made of elastomer silicone rubber with electrical conductive materials like graphite, nickel, glass silvering, sliver-plated aluminum, copper particles etc, in aim to reduces or eliminates the EMI, EMC or RFI (electromagnetic interference and radio frequency interference) noise that is often associated with electronics.
| Conductive silicone durometer & hardner | Shore A 30~ Shore A 85 |
Conductive Rubber Density | 3.5g.cm3 |

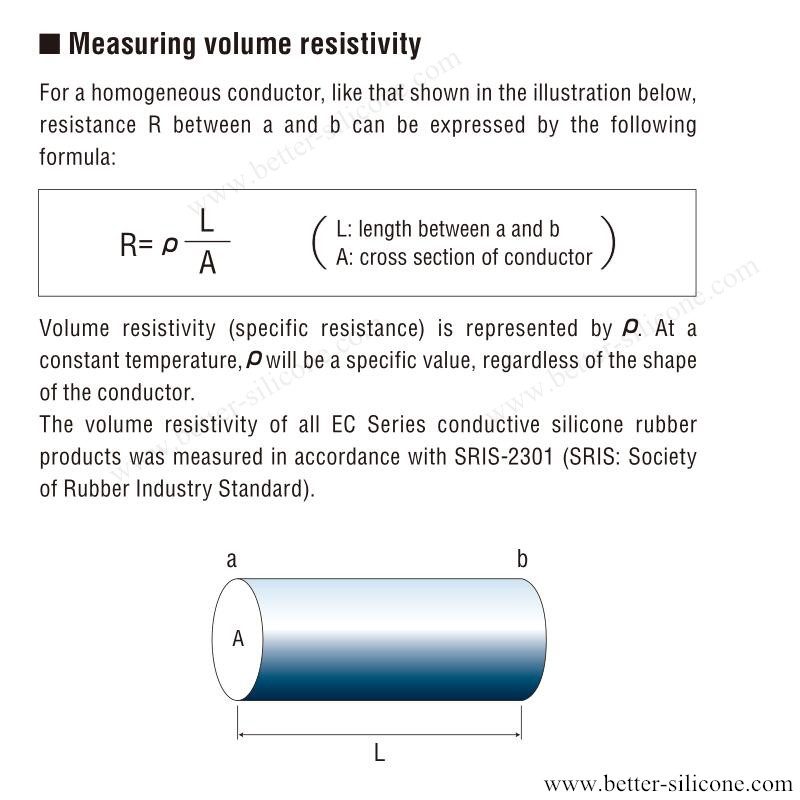

| Conductive Silicone Rubber Volume Resistance | <0.005Ω.cm3 |
| Tear Strength | 2.0Mpa |
Elongation at break | 100% |
Compression Set (-72 hours at 100 oC) | <25% |
Temperature Resistance | -55oC to 160oC |
| Color | Tan |
Shielding Effectiveness | |
200kHz (magnetic field) | 80dB |
100MHz (electric field) | 110dB |
500MHz (electric field) | 110dB |
2GHz (plane wave) | 115dB |
10GHz (plane wave) | 115dB |

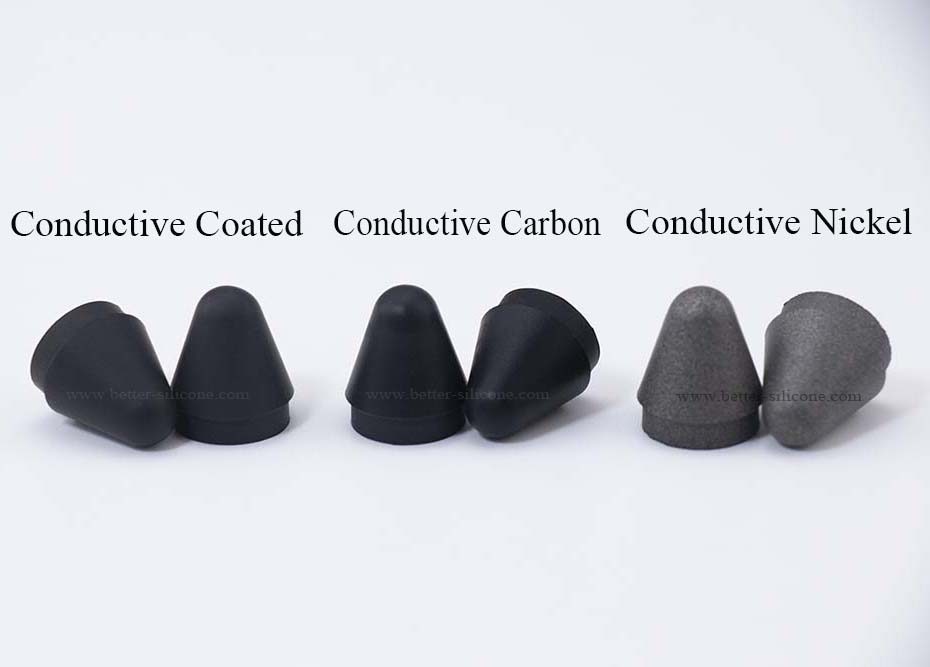

Conductive Silicone Rubber Stylus Tips for pen, mainly made by conductive spraying coating with protective paint. Some is made from conductive rubber materials.
