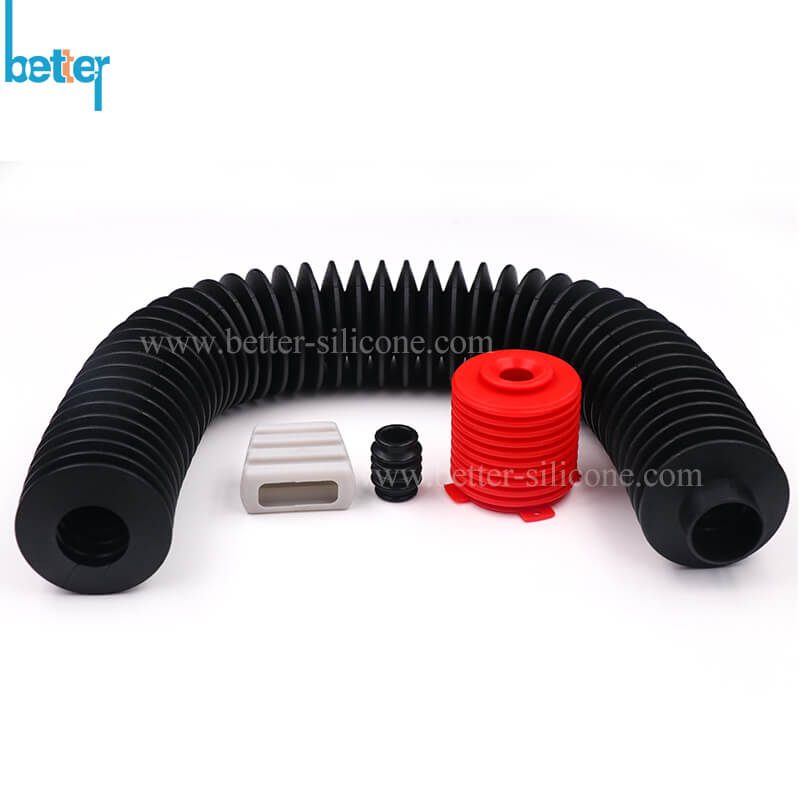

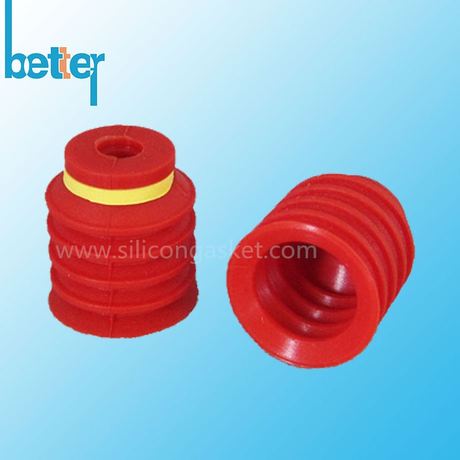

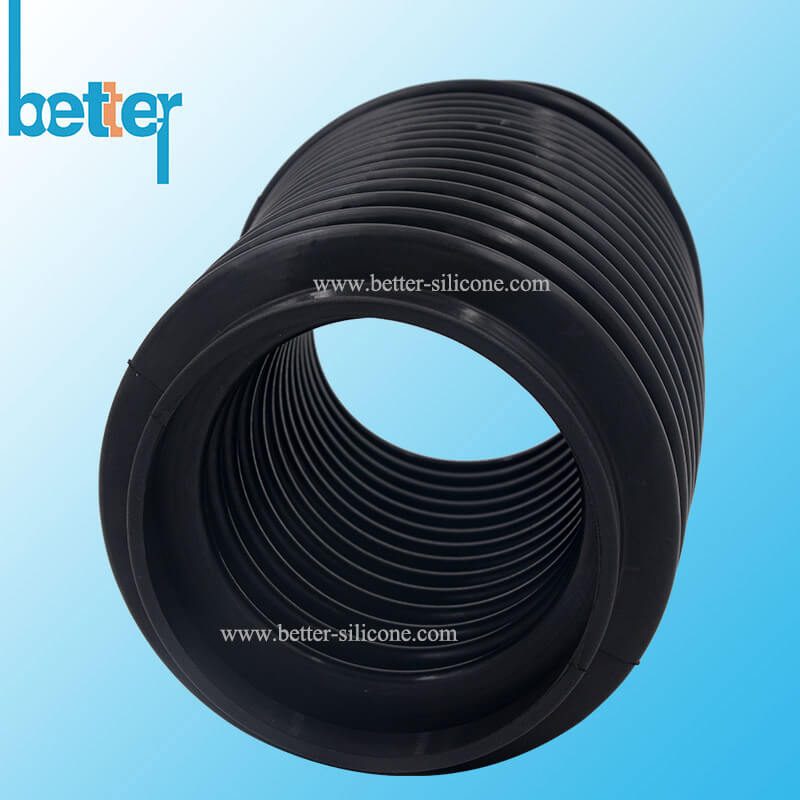

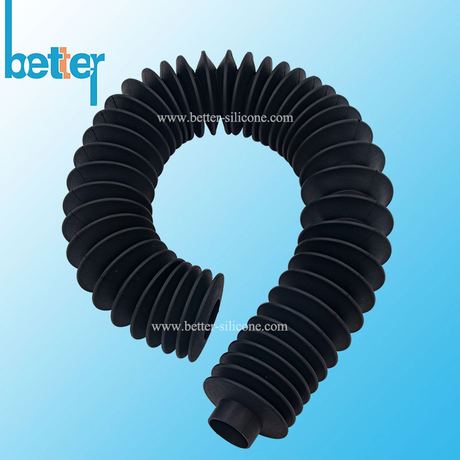

Silicone Rubber Bellows

Silicone Bellow, known as silicone expansion joints, convoluted silicon boots, which made from elastic medical & food grade silicone as a protective appliance to dust proof, anti-oil, water proof and other environment elements in aim to keep equipment performance in medical device, automotive, pumping, industrial usage etc.

Bellows Expansion joints also can made from NRB, EPDM, Neoprenne, FKM rubber etc

Material	Abbreviation	Temperature Range(dry heat)	Aging Weathering Ozone	Resistance to Oil & Grease	Water Swell Resistance	Flex-Fatigue	Economy of Material	Material Notes
Chloroprene (Neoprene) Bellows	CR Bellows	-40F to 250F	Good	Good	Average	Very Good	Good	exposure to refrigerants,can be compounded for FDA applications
Nitrile Bellows	NBR Bellows	-22F to 212F	Poor	Very Good	Good	Good	Very Good	excellent resistance to petroleum based oils and hydrocarbon fuels
Ethylence-Propylene Bellows	EPDM Bellows	-60F to 300F	Very Good	Poor	Very Good	Good	Very Good
Silicone Bellows	VMQ Bellows	-75F to 450F	Very Good	Average	Very Good	Very Good	Average	medical and aerospace applications
Fluororubber Bellows	FKM Bellows	5F   to 390F	Very Good	Very Good	Good	Average	Poor

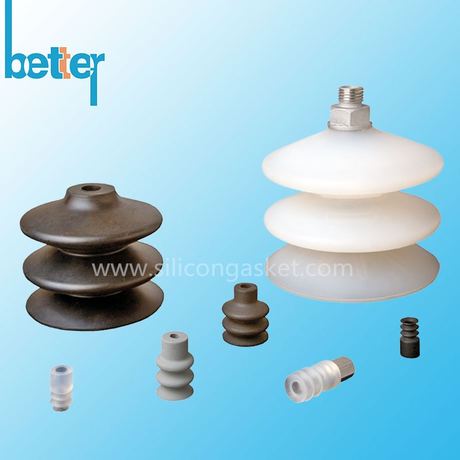

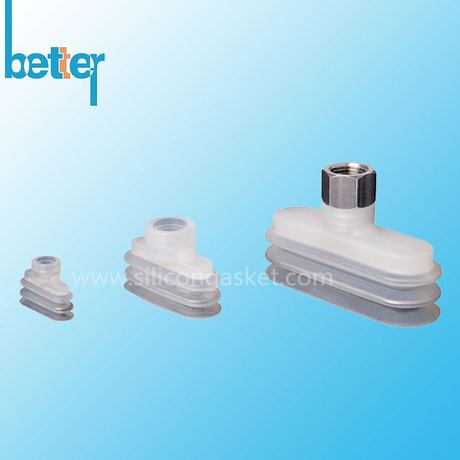

Silicone Bellows also can work as silicone rubber suction gripster.

Metal Silicone Overmolding Bellows

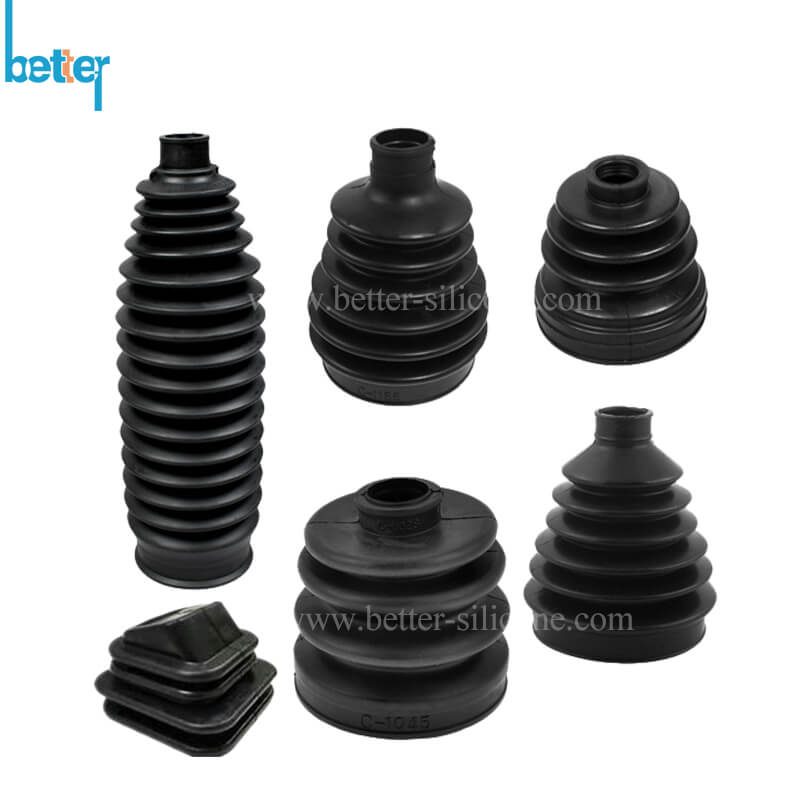

We can offer you various kinds of rubber dust covers which are used as fittings for automobile&motorcycles.

The choice of the material depends on the using purpose and the working environments, but not the price. Our factory can provide the products made from different materials for the diversified requirements.


Accordion rubber bellows is a kind of sealing products which is usually made of springing material and through the molding way to make it in the ring ship. It is generally used to seal the fluid liquid or gas, often works as a part of the whole set of sealing parts. O-Ring is good at both in static seal and dynamic seal, main material contains: NR, CR, NBR, SBR, VITON, SILICON, HNBR, etc.

Rubber expansion joints provide a wide range of rubber support with a reinforcement that depends on the pressure required. These types of expansion joints isolate noise and vibration. When it comes to damage caused by vibration and movement, each rubber expansion joint protects piping systems by avoiding such hazards.



Feature:

(1)Temperature range:-40 ^oC - 230^oC
(2) It has been specially  processed, no poison and no smell, flaming resistance, good heatproof,aging resistance, it can bear 200 ^oC high temperature, high voltage and cook for many times.
(3) It is slick surface, soft and flexible
(4) It is harmless to health, softness, non-toxic,water-fast, odorless, durable
(5) Density range from 1.13 to 1.19,fast rebound,low thermal conductivity
(6) Vulcanization within  48 hours
(7) Could  print your logo on it with marks,and other requirement
(8) Could  supply you free sample that will be according to your requirement, such as  size, thickness, color,and hardness



LSR & Liquid Silicone Bellows Manufacturing Process

silicone expansion joints Usage:

All kinds of cars, machinery, home appliance, electronic products, electric appliance, stationery, computers, power switches, miniature switches, architecture, commodity and A/V equipment, hardware and plastic molds, sports equipment and gifts, and more


Product Scope: Automobile, furniture, machinery, electronic, household, medical, etc

Provide Service: Rubber /silicone injection molding,  Rubber compression molding,  Custom rubber molding. plastic molding

File Format: Solid-works,Pro/Engineer,Auto CAD,PDF,JPG,IGS ,STP

Specification:
