Silicone Oxygen Mask

Silicone Oxygen Mask

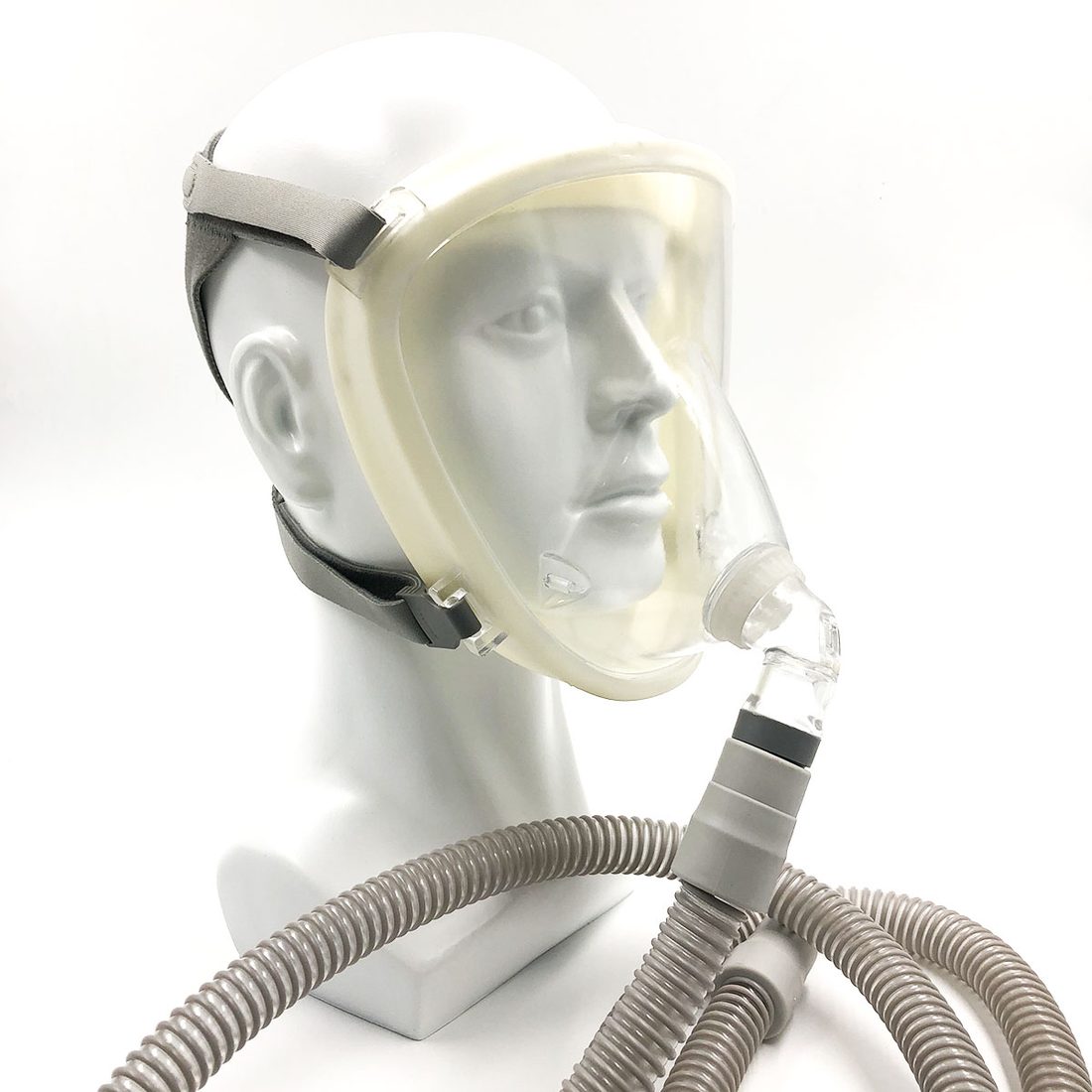

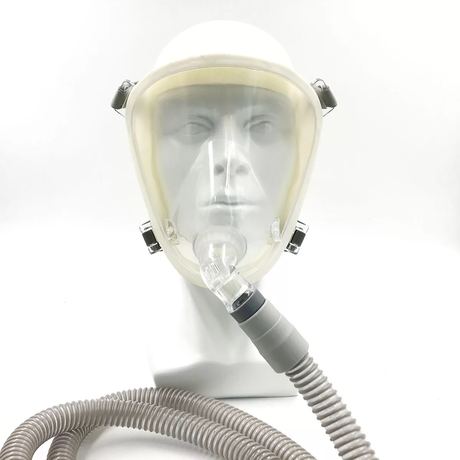

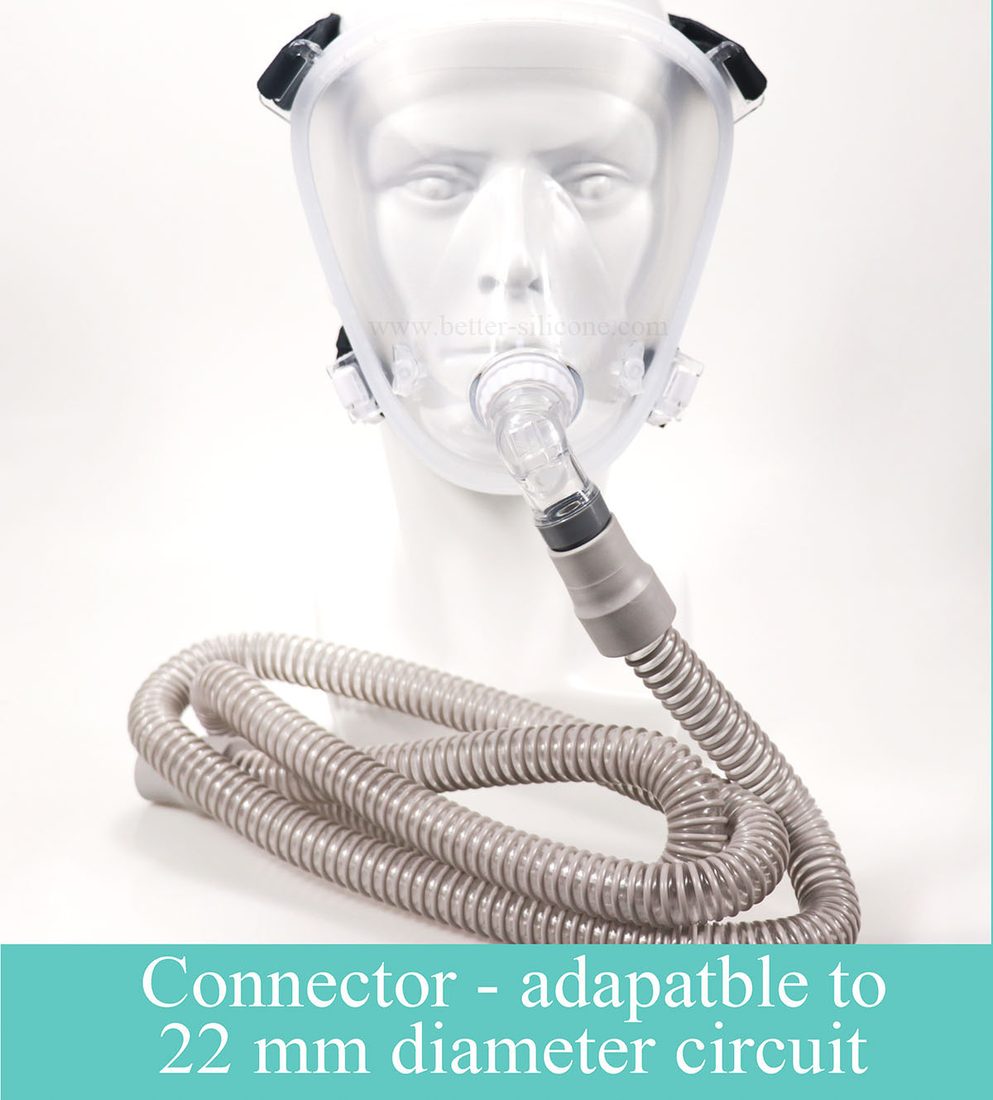

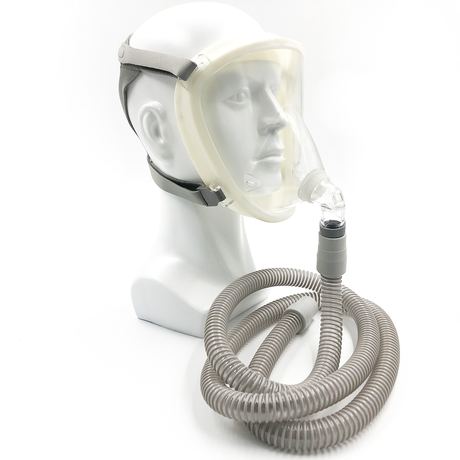

Silicone Oxygen Mask, also known as Total Face Mask, Full Face Mask, Respiratory Mask, Breathing Mask, etc, which are made from Medical Grade Silicone or Medical Grade Liquid Silicone by compression mold or Liquid Silicone Injection Molding. Total Face Mask is used to deliver Positive Airway Pressure (PAP) to patients (more than 66 pounds or 30 kilos) in the treatment of Obstructive Sleep Apnea (OSA). It is an alternative to traditional full-face masks, sealing around the perimeter of the face where patients have less pressure sensitivity and smoother facial contours.

Generally, for simple structure silicone protective face mask without high quality requirements, compression molding is OK for production. In this way, compression mold tool cost is much cheaper than LSR Injection Mold. Usually the compression mold tool cost is 3000-4500USD. While for silicone mask with high quality requirements, can only choose liquid silicone injection mold, but liquid silicone injection mold will be much high than compression mold.



Silicone Oxygen Mask Accessories

Plastic Mask Frame of Silicone Oxygen Mask

Soft Silicone Cushion Full Face Mask

Total Face CPAP Mask with Headgear

Headgear for Total Face CPAP Masks

Headgear Clips for Total Face CPAP Mask

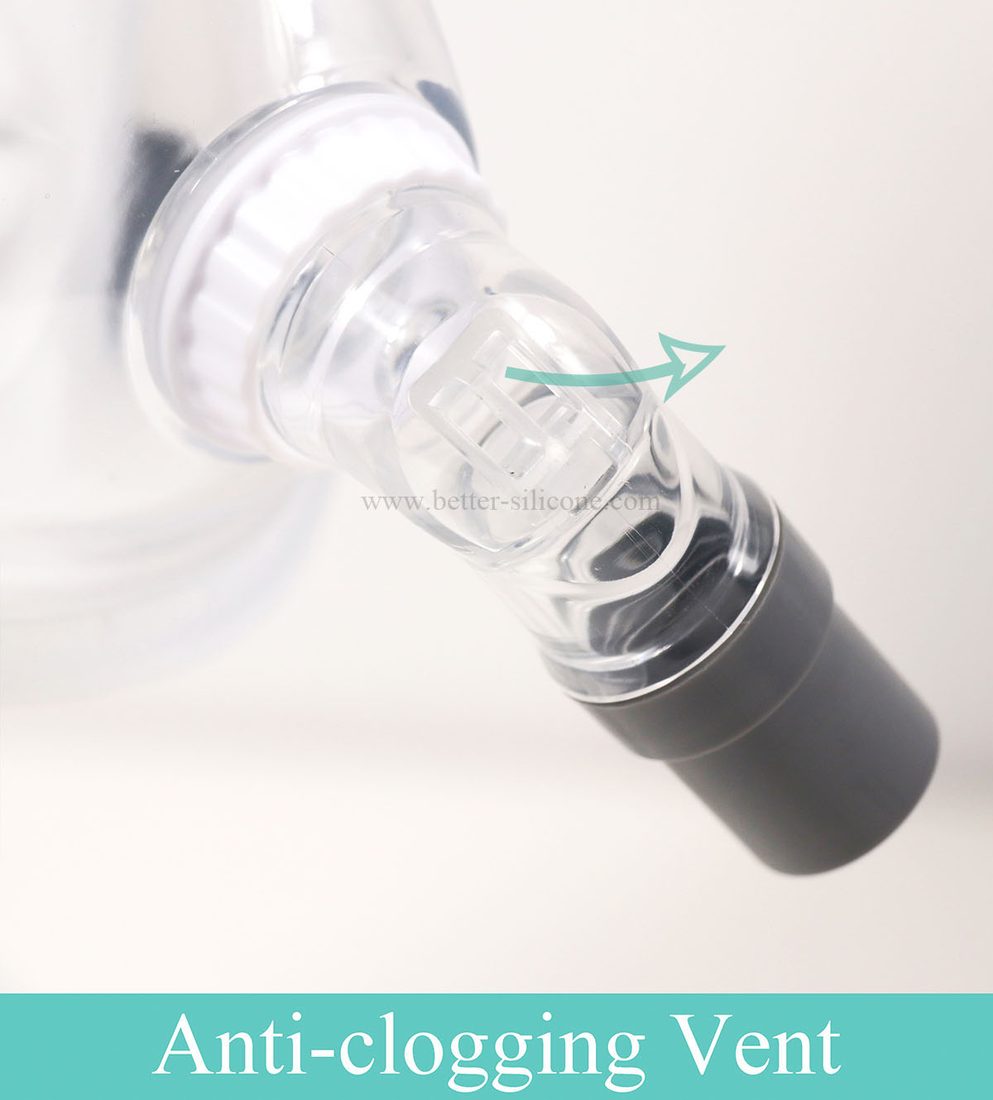

Exhalation Elbow for Total Face Mask

Convoluted Hose Assembly for Full Face Mask

Full Face Mask Hand Wheel

Silicone Oxygen Mask Production Process

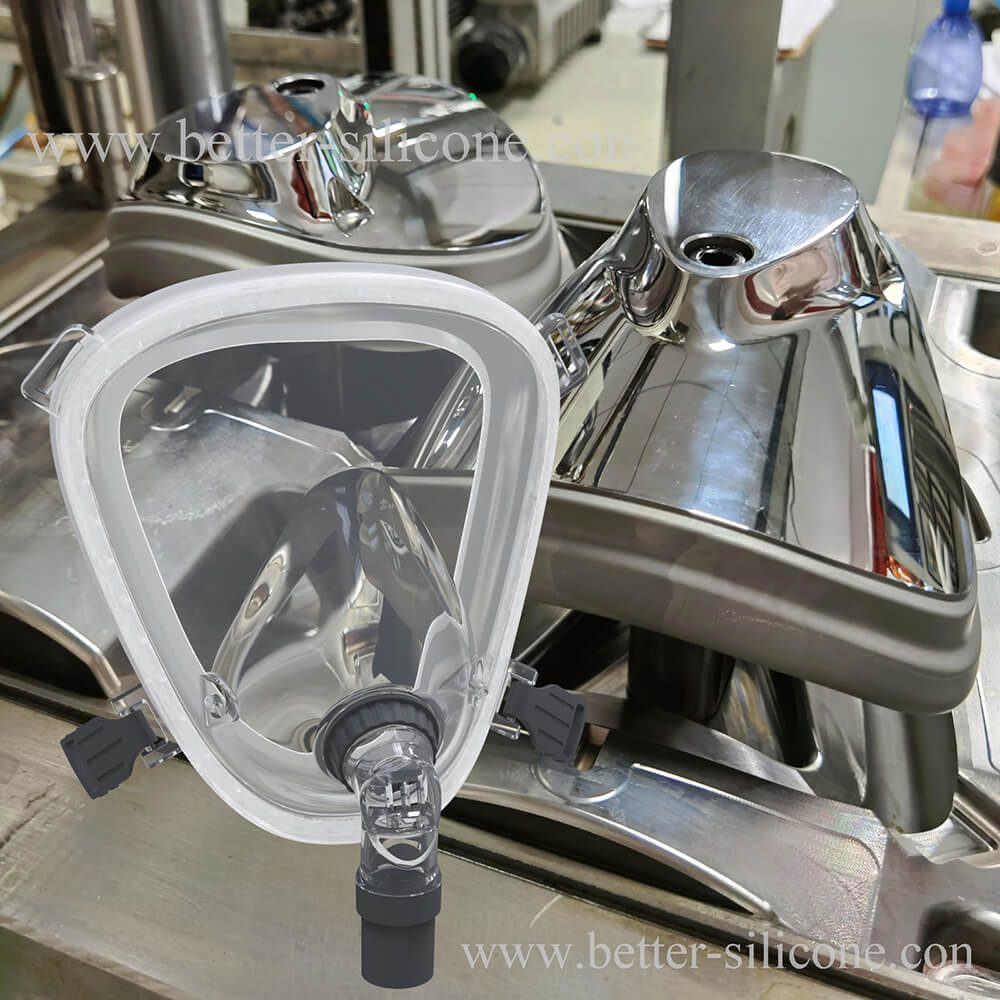

Silicone Oxygen Mask Plastic Frame is overmolded with the soft LSR Cushion.

Before overmold, plastic frame edge surface need to be coated with glue. Glue Primer is another key element in silicone cushion to plastic frame bonding process. Before silicone overmolding, silicone cushion and plastic frame adhesive compatibility should be analyzed first, and then decide which glue is best for both different material combination. Overmolding plays an important role in mechanical bonding, but glue primer has an effect on chemical bonding. Under overmolding temperature, glue adhered silicone cushion and plastic frame together and silicone cushion at the same time encapsulate or cover the plastic inserts. Physical bonding and glue bonding occurs in overmold process, and make finished parts bonding together.

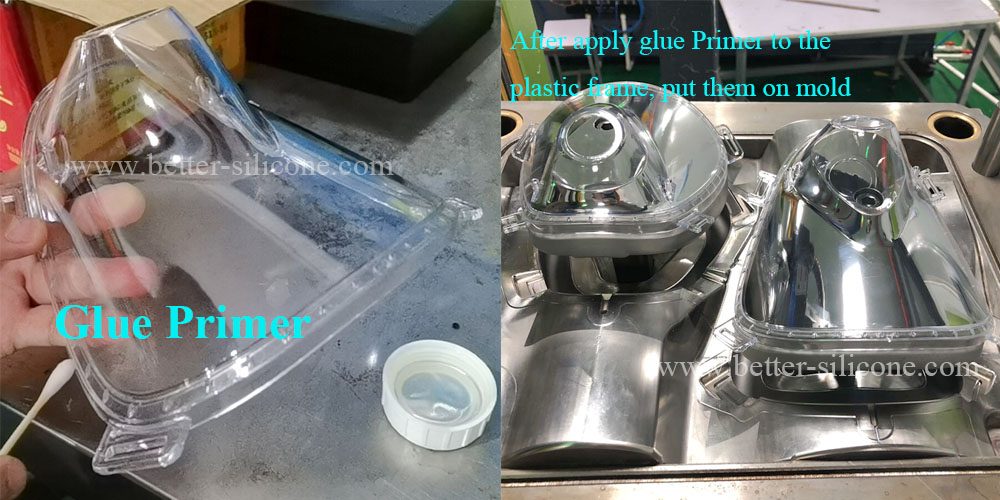

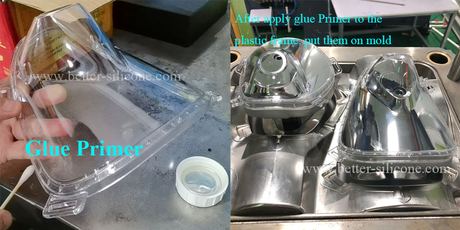

After glue primer is applied to plastic frame surface, put the plastic frame into the mold for overmolding.

Silicone Oxygen Mask are produced by liquid silicone material.

GA LIQUID SILICONE TDS REPORT.pdf

GA LIQUID SILICONE FDA REPORT.PDF

GA LIQUID SILICONE MSDS--28EN.pdf

Silicone Oxygen Mask Advantages

• Total Full face mask is more comfortable, the large area inside the mask equalizes pressure and minimizes eye irritation.

• Total Face Respiratory Mask has a fantastic seal around the less pressure sensitive areas of the face while providing an unrestricted view.

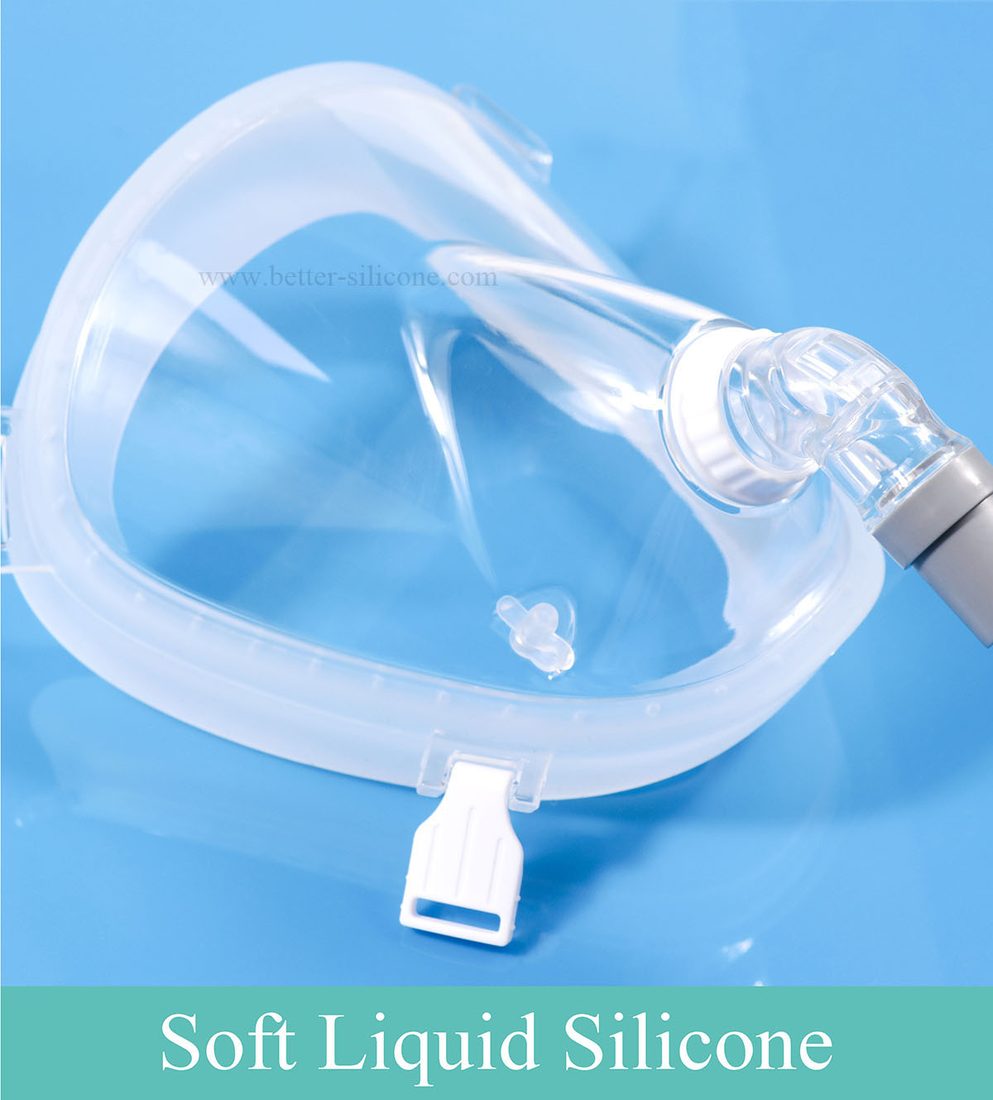

• A soft liquid silicone cushion creates the perimeter seal, that gently seals around the perimeter of the face, avoiding the need to seal at the nasal bridge. Thus, the seal is immediately effective, requiring fewer adjustments to obtain a leak-free fit.

• Over-molded cushion is integrated into the mask frame, reducing the number of parts

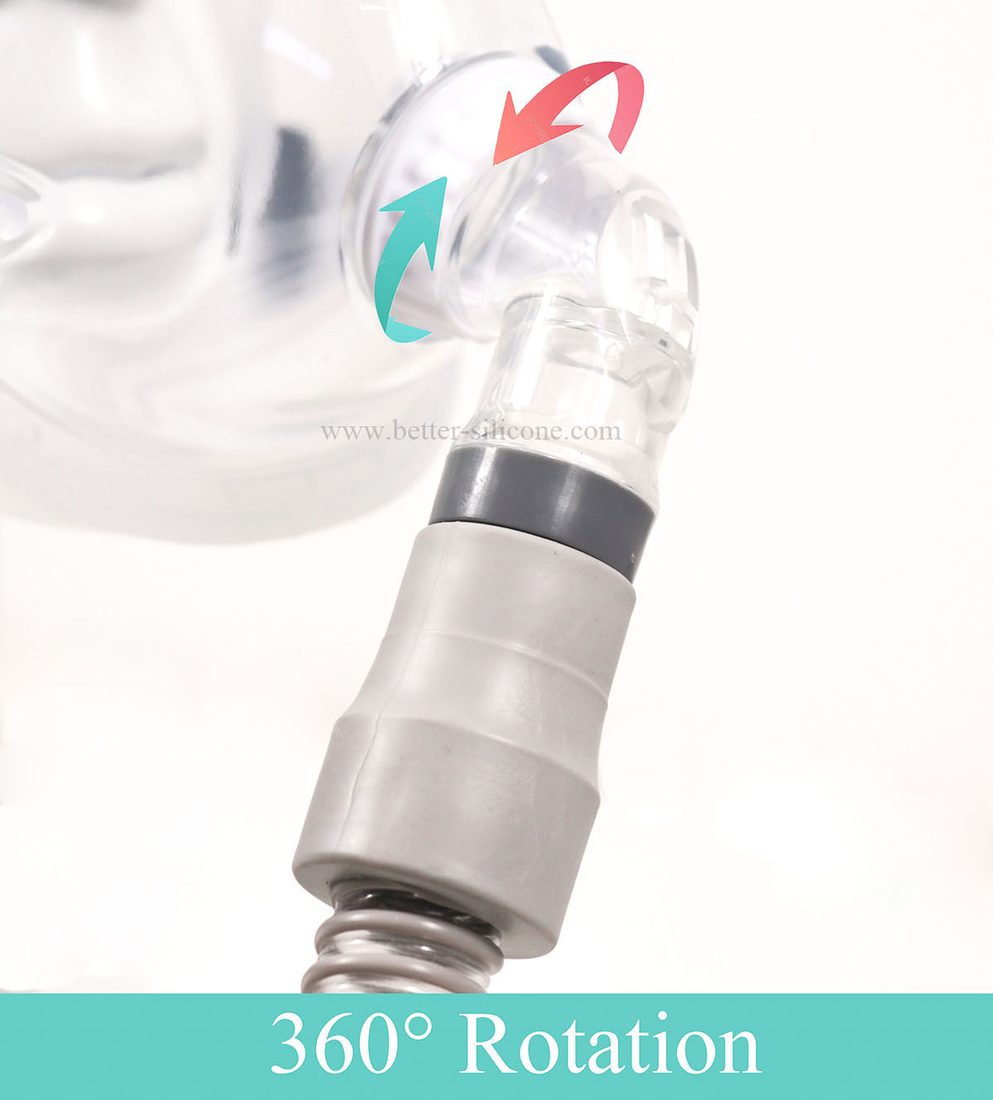

• Accessory swivel allows for freer, less restricted tubing movement

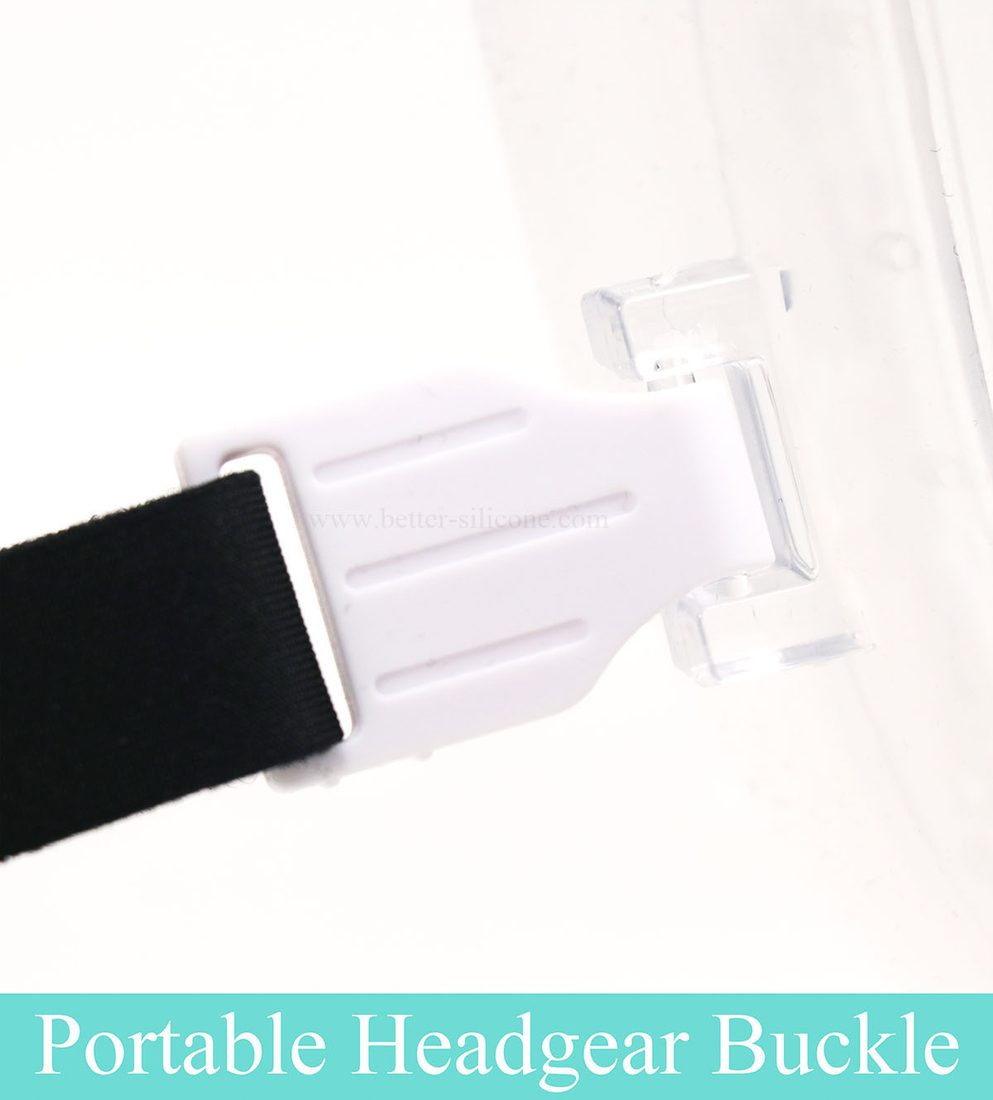

• The Snap clips simplify re-application and eliminate the need to refit after removal.
