Custom Screen Print Silicone Rubber Keypad
Custom moulded by Xiamen Better Silicone Rubber Co., Ltd. Made to your drawing, 3D model or sample.
| Model | SKS2 |
|---|---|
| Brand | Xiamen Better Silicone |
| Code | 1B1C1 |
- Category
- Screen Printing Silicone Keypad
- Lead time
- Quoted with the part
- Tooling
- Designed and cut in house
Also searched as:Screen Print KeypadScreen Print Rubber KeypadScreen Print Silicone KeypadPrint KeypadScreen Print Elastomer Keypad
Product description

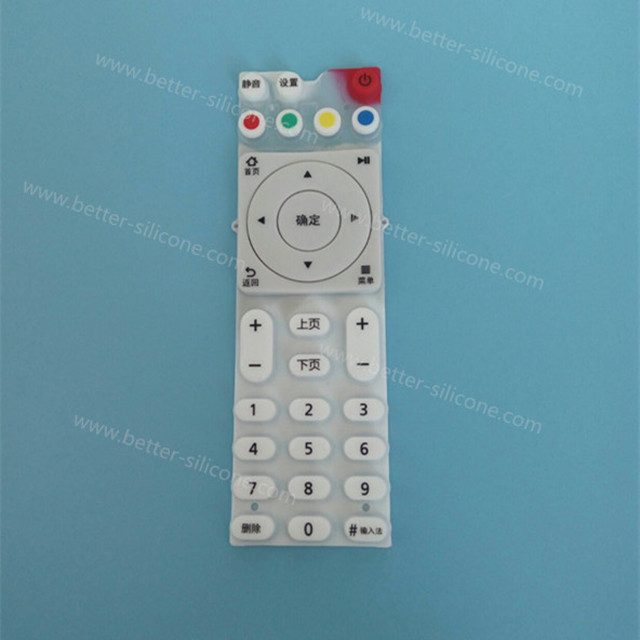

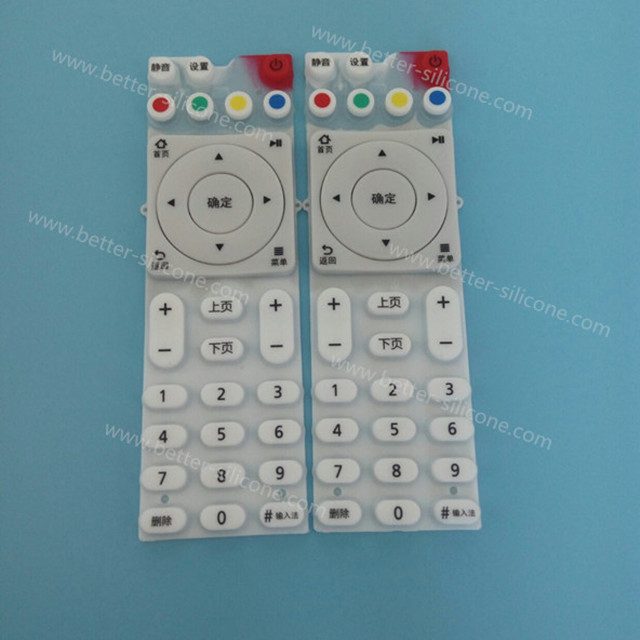

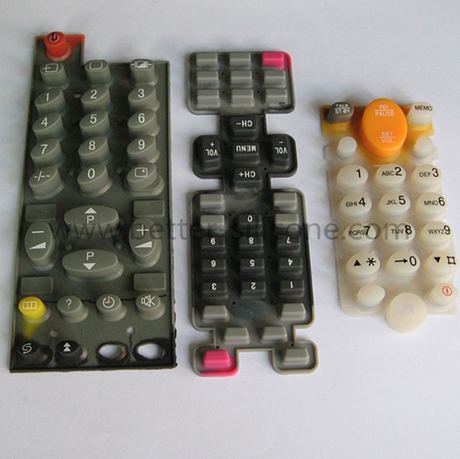

Screen Print Silicone Rubber Keypad:
Screen Print Keypad, which have two process ways: Surface Silk Screen Keypad and Bottom Silkscreen Keypad.
Surface Screen Print Keypad: The keypad need to spray painted before do font or symbol printing, and then do PU coating Process to protect the legends.
Bottom Screen Print Keypad: This kinds keypad is generally for transparent silicone keypad .
Notes: If the surface keypad radian is high, The best choose pad printing (transfer printing).
Screen Print Keypad Abrasion and Protection:
Font or symbol on the surface of silicone rubber keypads and spray paint is easy to wear off if without PU coating, UV+PU coating, Epoxy Coating or Sealplast ect.
1. Screen Print Silicone Keypad
2. Laser Etched Silicone Keypad
3. Epoxy Coating Silicone Keypad
4. P+R Keypad
5. Double Color Silicone Keypad
6. Backlight Silicone Keypad
7. Fluorescent Silicone Keypad
8. Conductive Printing Silicone Keypad
9. M+R Keypad
Quickly Quotation Requirements
1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples
2. Include number of legend and silicone colors, Of need silicone light guide.
3. With or without carbon pills
4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.
5. Quantities to be quoted
These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.
Our Advantages:
1. Precision Own Mold-Making Technology (Since 1998)
2. Competitive Price: Origin Manufacturer.
1.) Mold-Making Plant
2.) Silicone Rubber Compression Plant
3.) Plastic Injection Plant
4.) Liquid Silicone Rubber Injecton Plant (LSR)
5.) Assembly Plant.
3. Five Experienced Designers and Engineers
4.Production and Test strictly according to ISO9001.
Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.
5. Production Environment
6. Rapid Reaction Organization: Support Customer at short time
